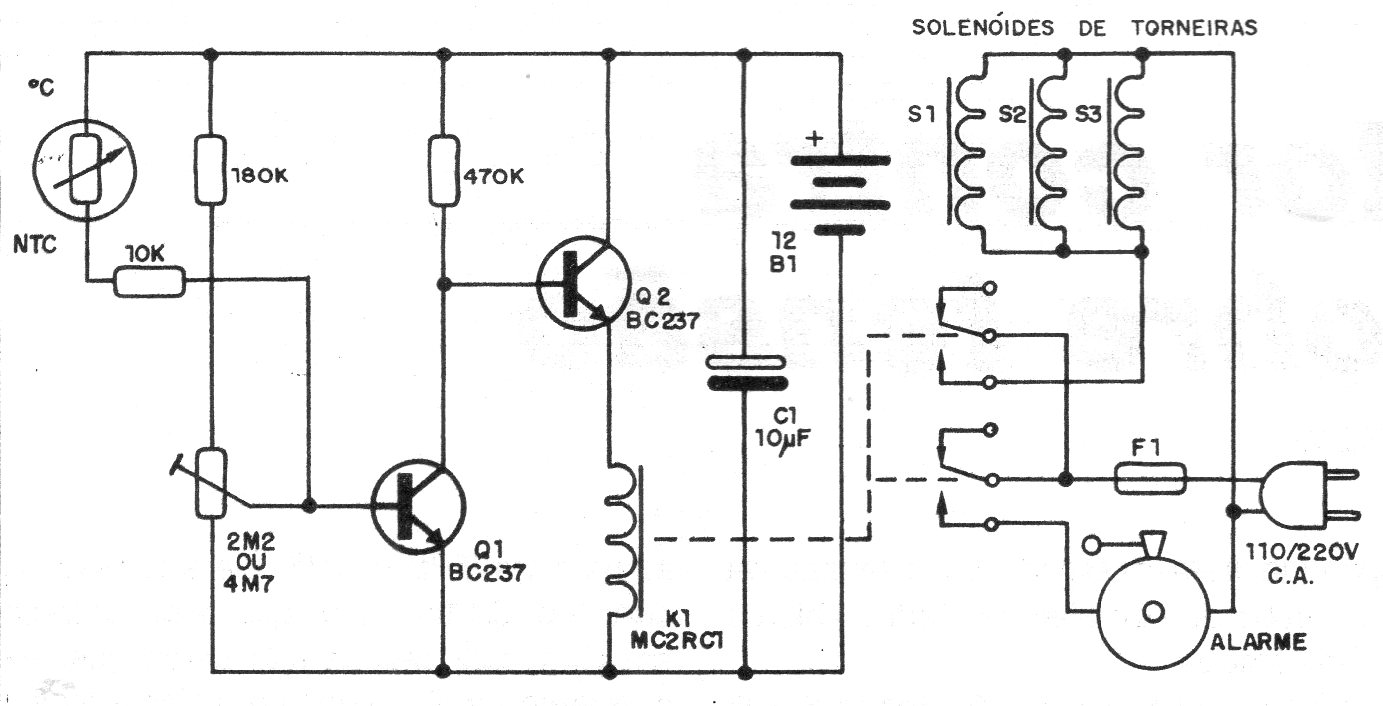

We found this circuit in a 1987 publication. Through a relay, it controls water valve solenoids at several points when the sensor, an NTC, is heated. The adjustment of the trigger point is made by the trimpot. The circuit is powered by a 6 V battery but will operate on 12 V if a relay is used for this voltage.
