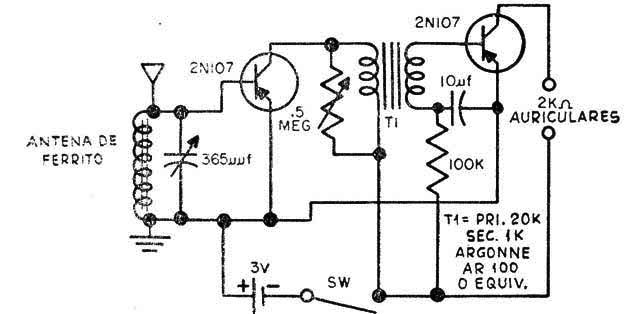

This two-transistor MW radio was found in a publication from 1958. It uses one of the oldest type of transistor, a germanium type 2N107. The coil is formed by 100 turns of 26 or 28 AWG wire on a ferrite core. Antenna is a wire 5 to 20 meters long.
This two-transistor MW radio was found in a publication from 1958. It uses one of the oldest type of transistor, a germanium type 2N107. The coil is formed by 100 turns of 26 or 28 AWG wire on a ferrite core. Antenna is a wire 5 to 20 meters long.
