3 V LED Pulsator (CB16932E)

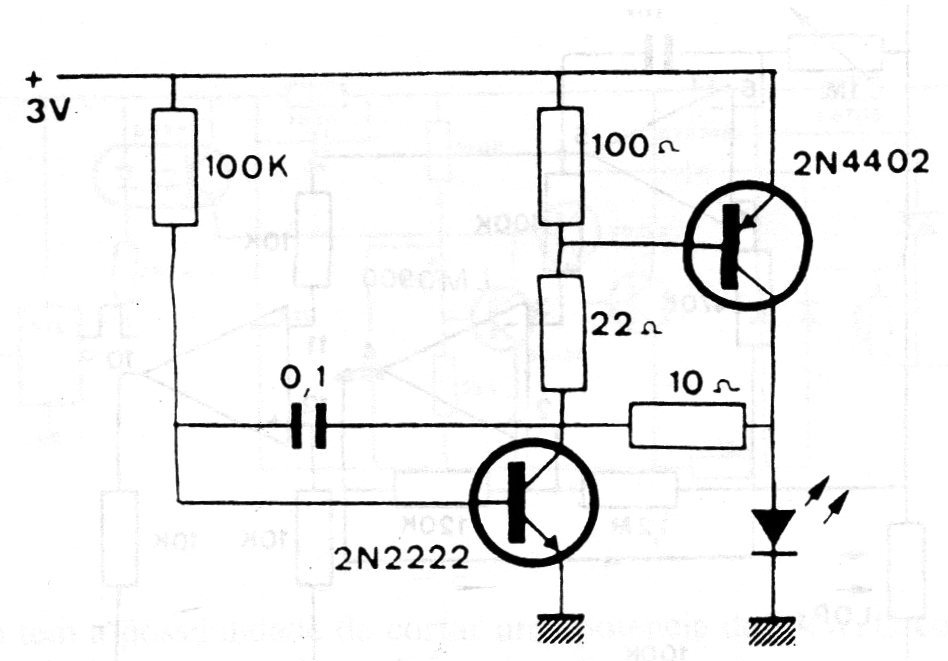

This circuit causes an LED to flash at a frequency determined by the capacitor. The circuit is powered by only 3 V and can be used for signaling.

| Clique na imagem para ampliar |
