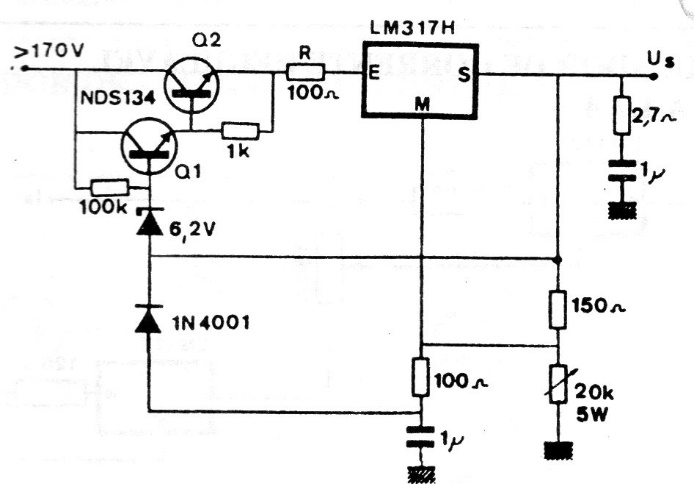

This regulator circuit is for high voltage inputs making its initial reduction so that a common integrated regulator can be used. This circuit uses high voltage transistors that are not very common today, but that can be replaced by equivalents. The integrated circuit and Q2 must be mounted on heatsinks.
