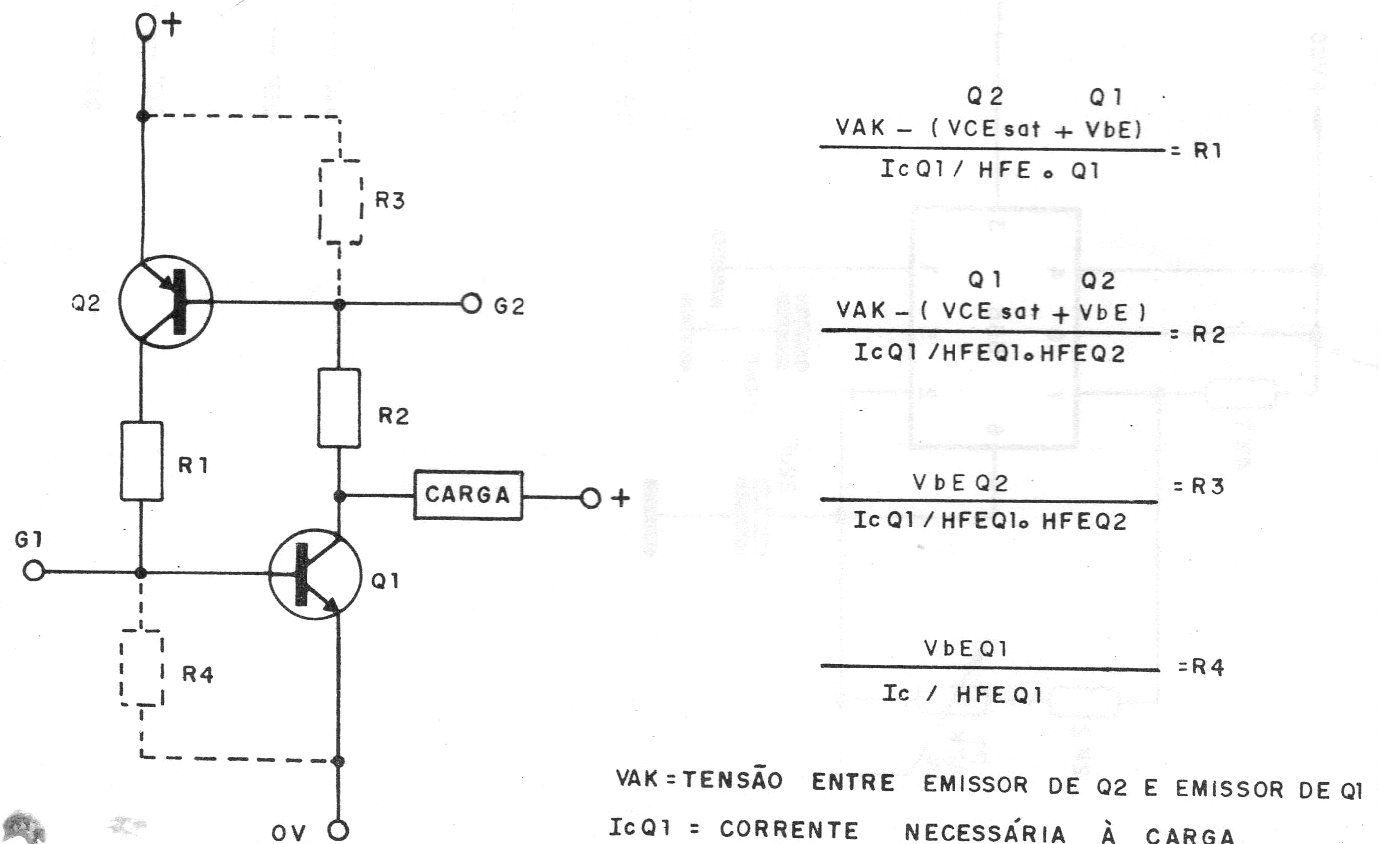

In the figure we have the way to simulate an SCR using two complementary general-purpose transistors such as BC548 and BC558. The formulas for calculating the components used are given next to the diagram. Various practical circuits can be found on the website using this configuration.
