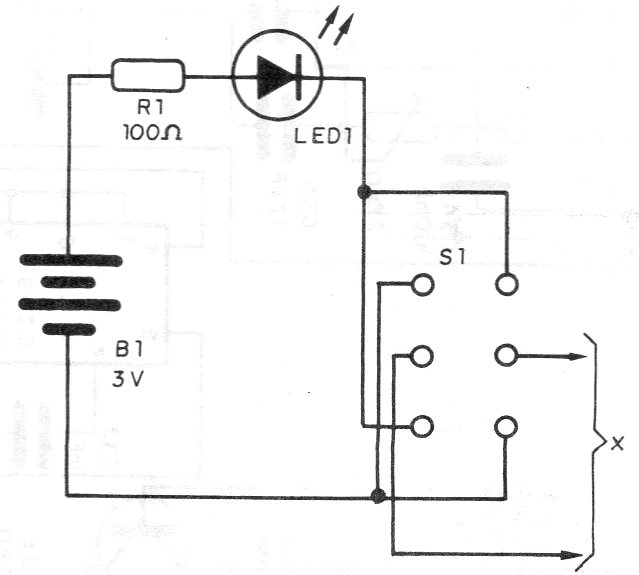

The circuit shown consists of a simple tester for general purpose silicon or germanium diodes and rectifiers. The test voltage can come from 2 or 4 batteries and the indication is given by an LED.
Simple Diode Tester (CB16732E)
- Details
- Written by: Newton C. Braga
