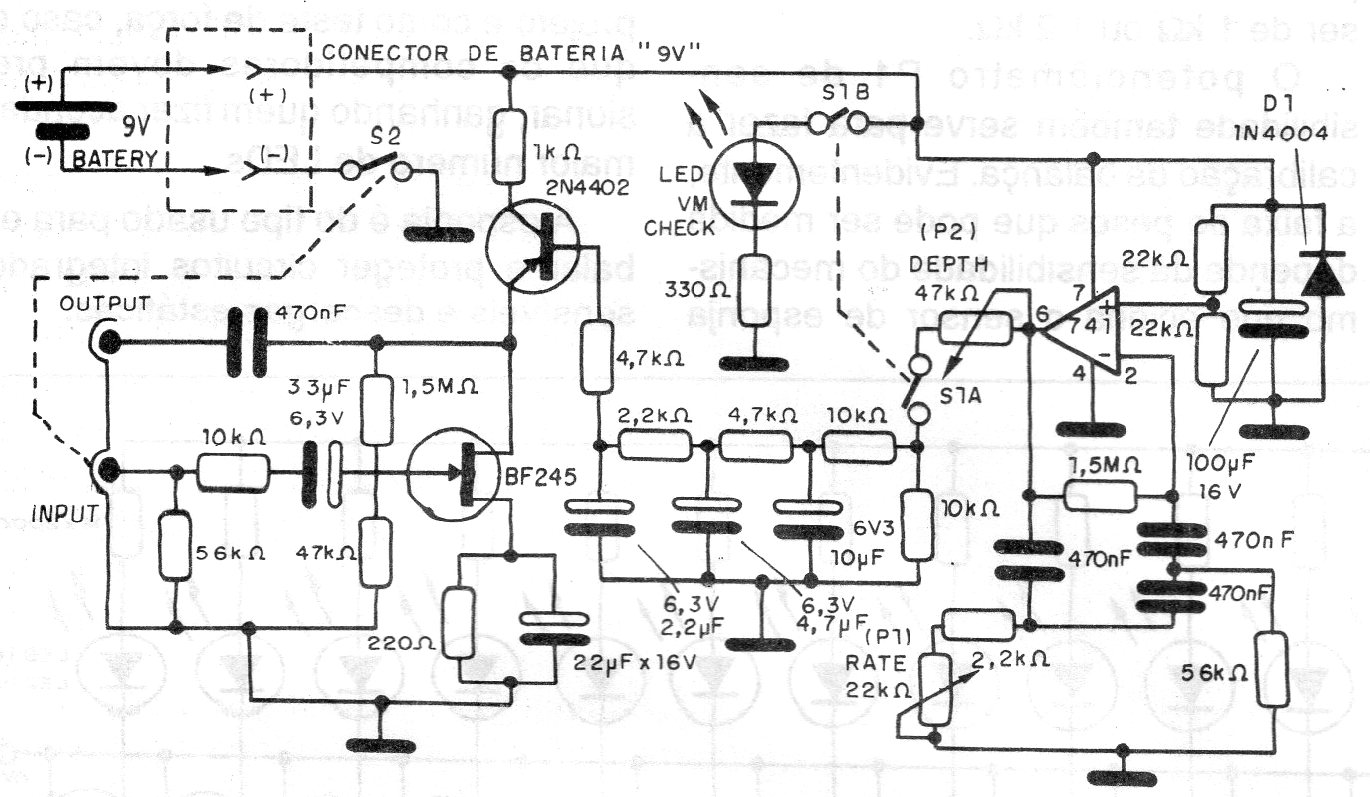

This circuit was found in a 1992 documentation but uses discrete components that can still be found with ease today. The circuit is powered by battery and care must be taken with the audio cables so that humming does not occur.
| Clique na imagem para ampliar |
