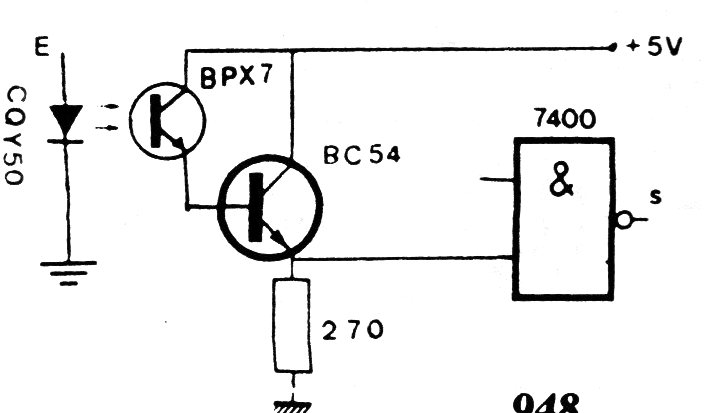

This circuit can be used as an optical switch or photosensor to excite TTL logic. The transistor can be the BC548 and any phototransistor can be used. The circuit is from ancient French documentation from the 70s.
| Clique na imagem para ampliar |
TTL Optical Sensor (CB16930E)
- Details
- Written by: Newton C. Braga
