Voltage Follower 741 (CB16811E)

Details
Written by: Newton C. Braga

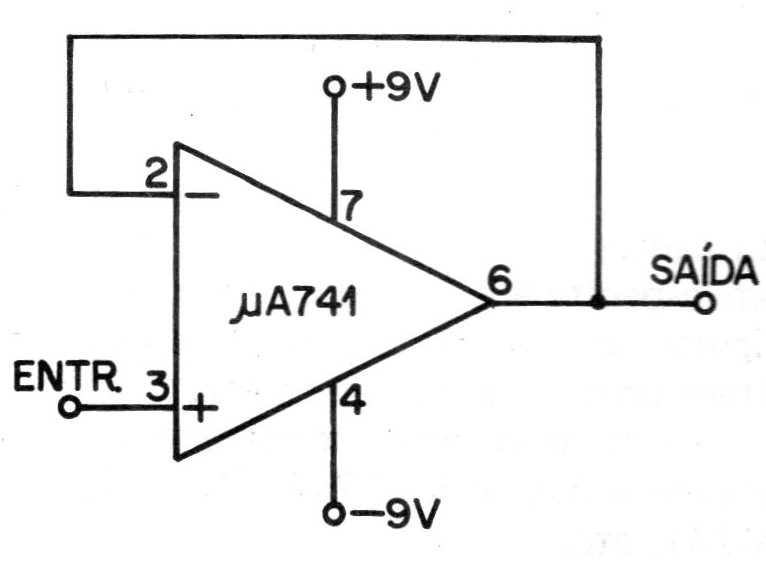

This is the traditional voltage follower configuration with the 741 operational amplifier. The circuit is from 1976 documentation and the power supply must be symmetrical from 6 to 15 V.
