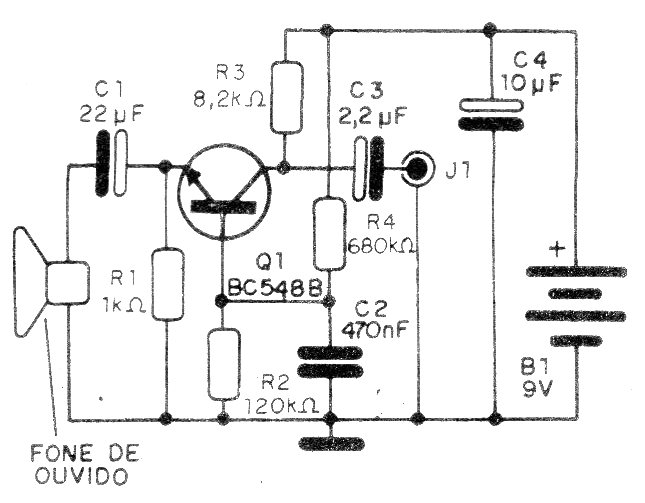

This circuit makes it possible to use a low impedance headset as a microphone. The circuit, on a common basis, has a higher output impedance, matching the input of most amplifiers. The circuit can be powered by 4 batteries or 9 V battery.
| Clique na imagem para ampliar |
