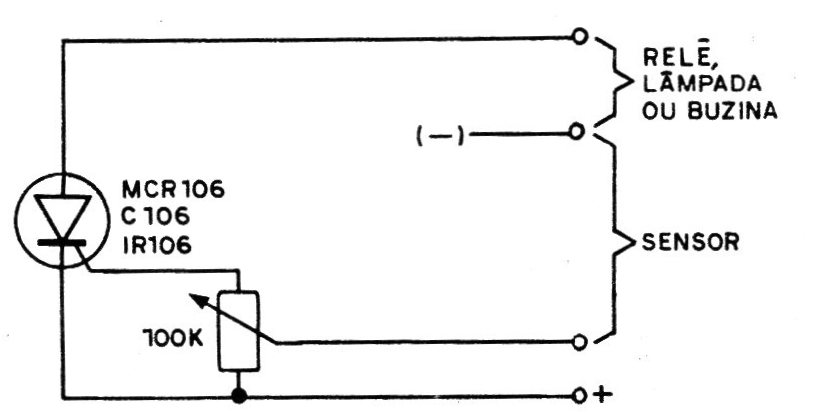

We found this simple alarm circuit in a 1981 documentation. As we can see, it is a car alarm triggered by a switch on the door or another access point. The trimpot adjusts the trigger point and the circuit works with both 6 V and 12 V voltages.
