3 V MW Receiver (CB963E)

Details
Written by: Newton C. Braga

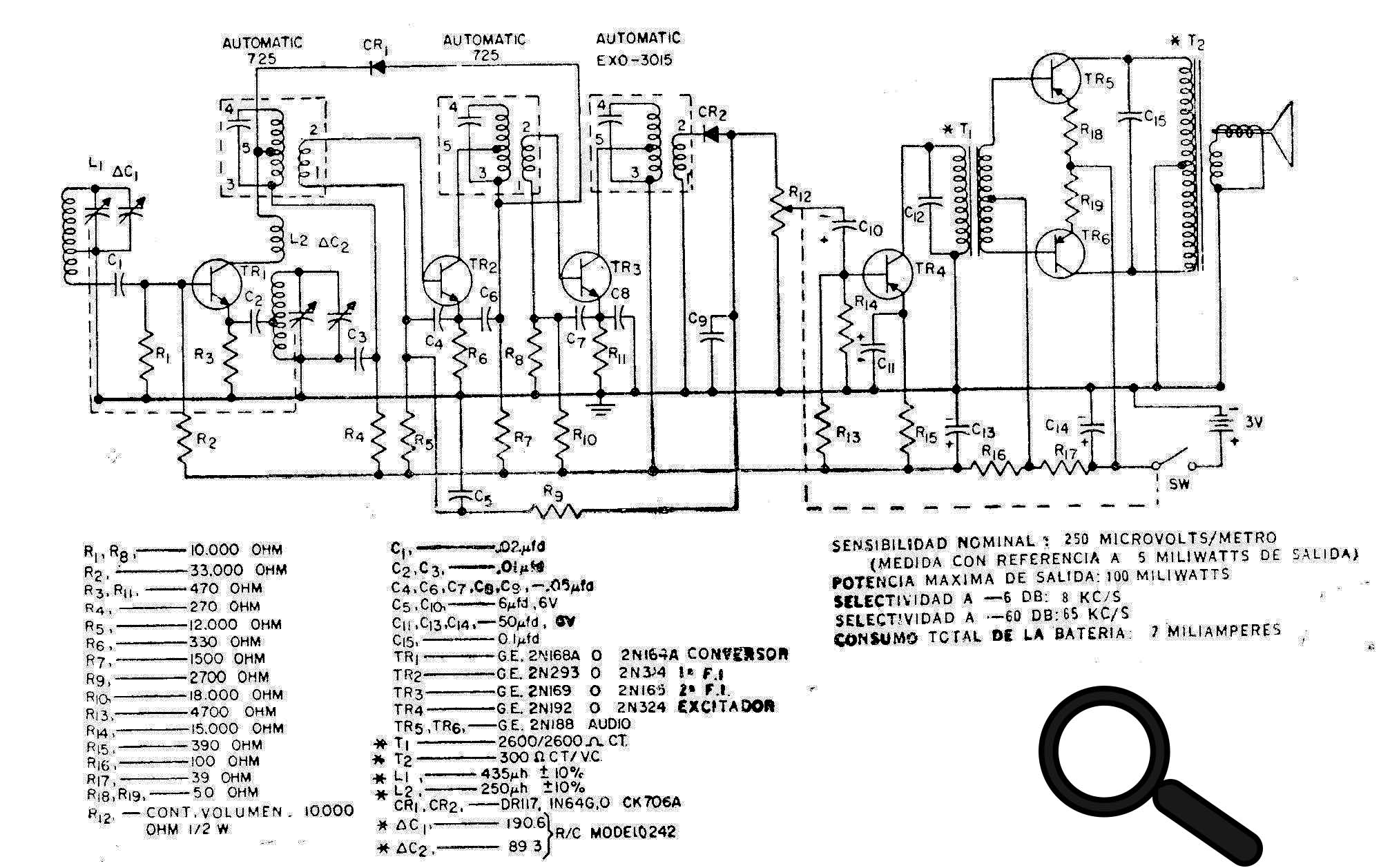

This commercial receiver from the year 1958 uses two AA cells as Power supply. The circuit is intend to receive MW station and the transistors are germanium types not easy to find today.
