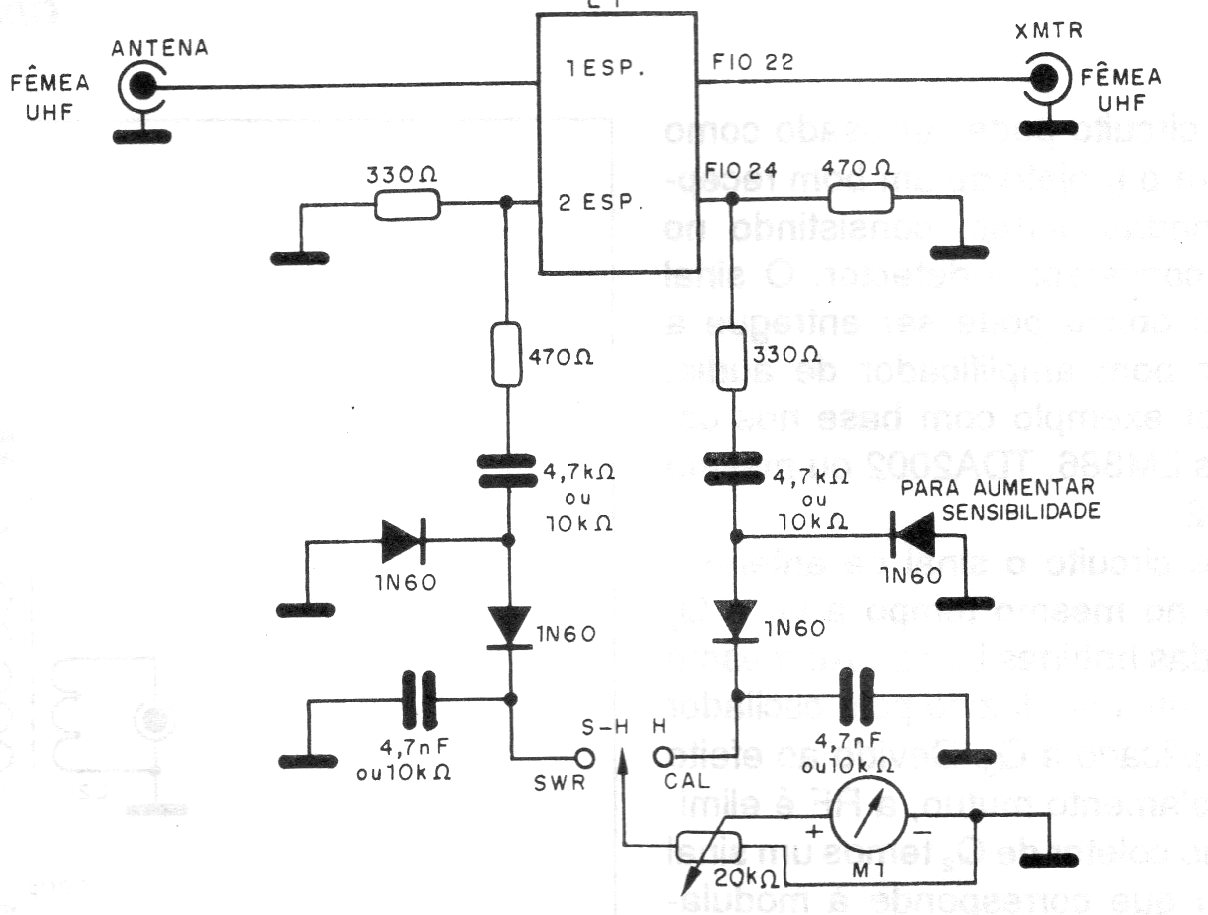

This Meter of Standing Wave Ratio (SWR) was found in a 1994 documentation. The circuit uses only passive components, and the indication is made in a common microammeter. Details of the transformer are given next to the figure.
