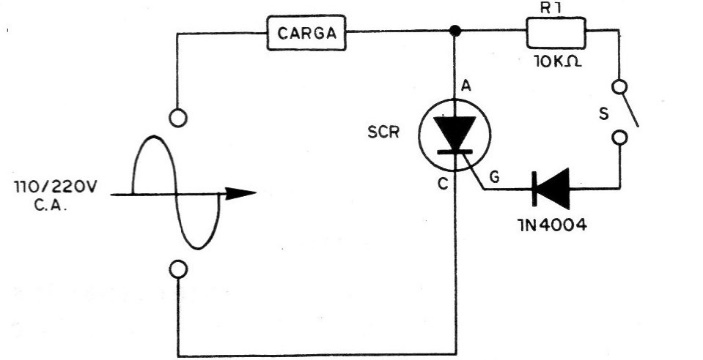

This circuit shows how to control a power load using a low current switch. The circuit is half wave and the maximum current controlled depends on the SCR. The SCR must have a heat sink. SCRs of the TIC series can be used with voltage according to the supply network.
