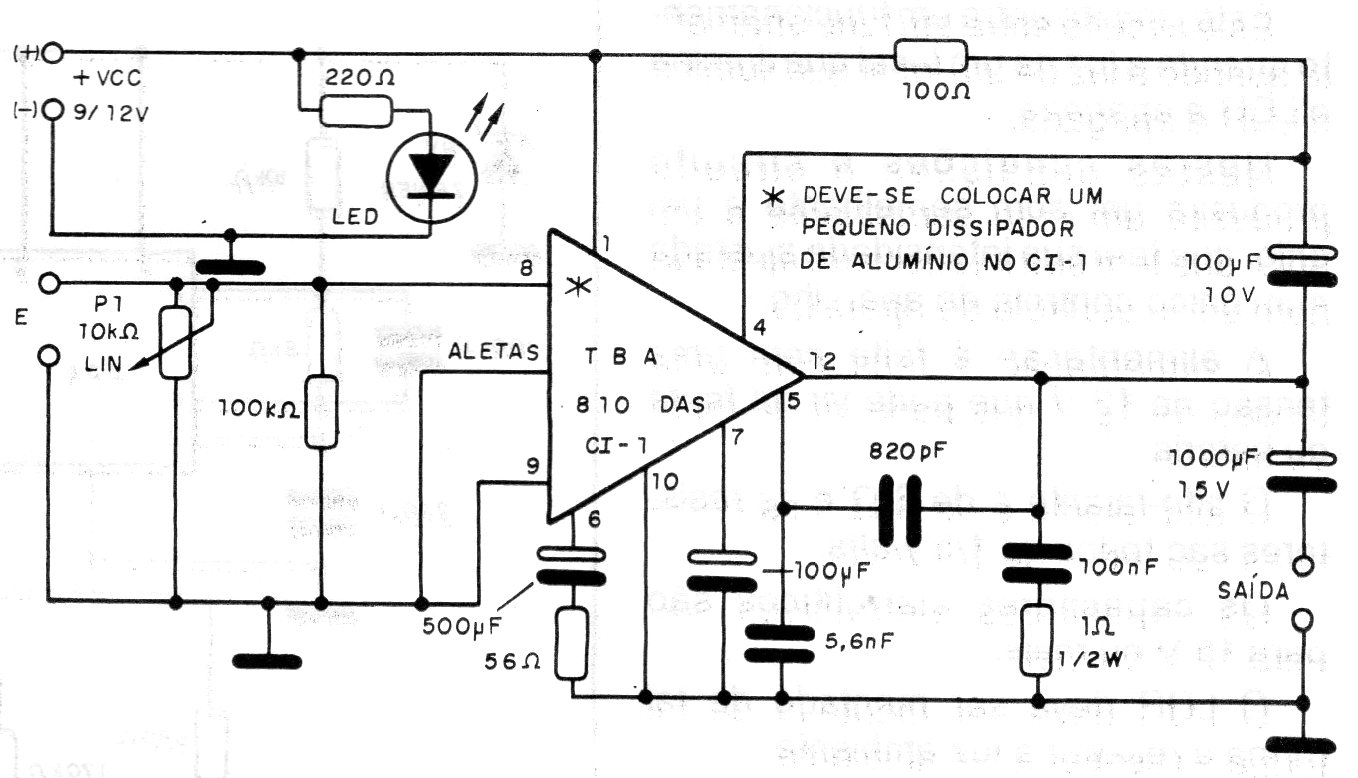

The TBA810 integrated circuit is no longer common today. This circuit shows an application of this component in the modulation of AM transmitters up to about 5 W of power. The project is from 1992 and the TBA810 must have a heat sink. The supply can be done with voltages from 9 to 12 V.
