FET Amplifier Stage (CB969E)

Details: Written by: Newton C. Braga

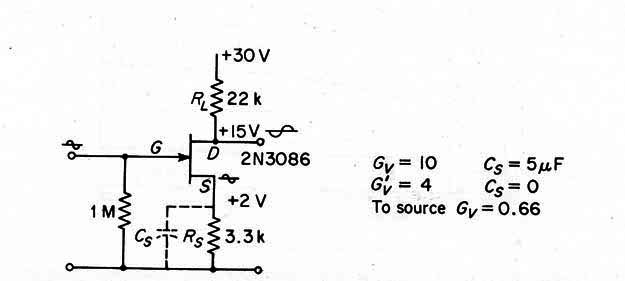

This JFET amplifier was found in documentation from 1958. The circuit has voltage gain of 4 and 10 according Cs. Equivalents for the JFET can be used.
