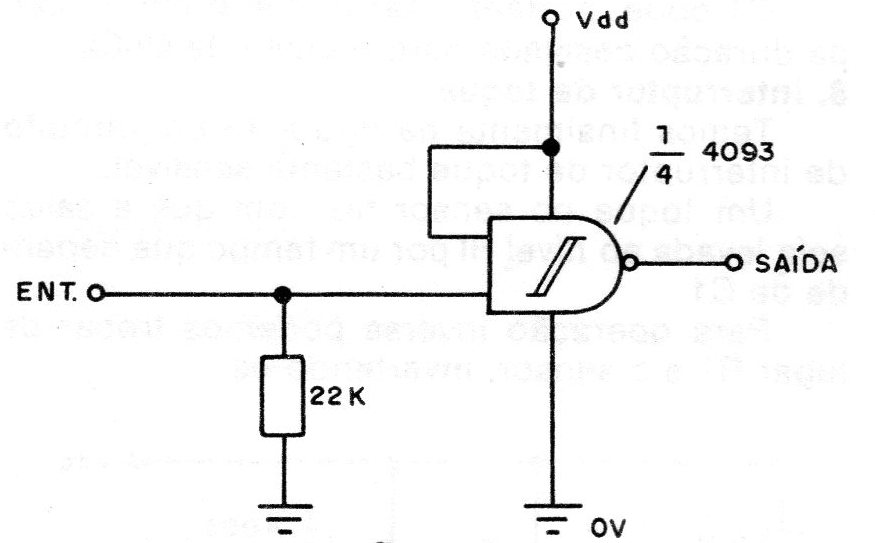

An input polarization resistor typically of 22 k is used, which serves as a load for the exciter circuit and determines the impedance. In this circuit, a slow transition from an input DC level causes a very fast transition of the output voltage.
