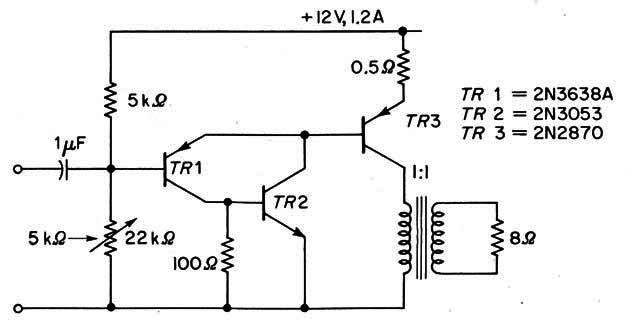

This directed coupled amplifier uses a transformer to drive a low impedance loudspeaker. This circuit uses germanium transistor, common at the time the circuit is published (1968), but can be mounted with silicon equivalens with small changes. The output power is 5 W. use a TIP32 for TR3.
