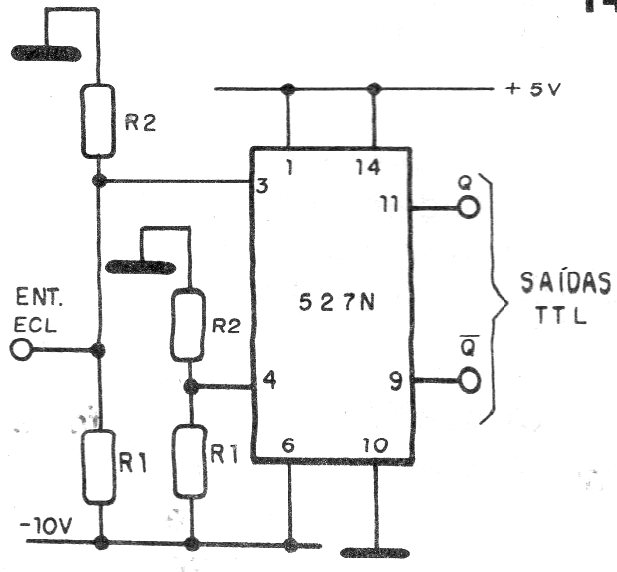

Although ECL logic is rare (no longer used), this circuit from a 1992 documentation shows how to interface with TTL logic. The integrated circuit used is also uncommon nowadays and the supply must be made with a voltage of 5 V.
Interface ECL to TTL (CB16675E)
- Details
- Written by: Newton C. Braga
