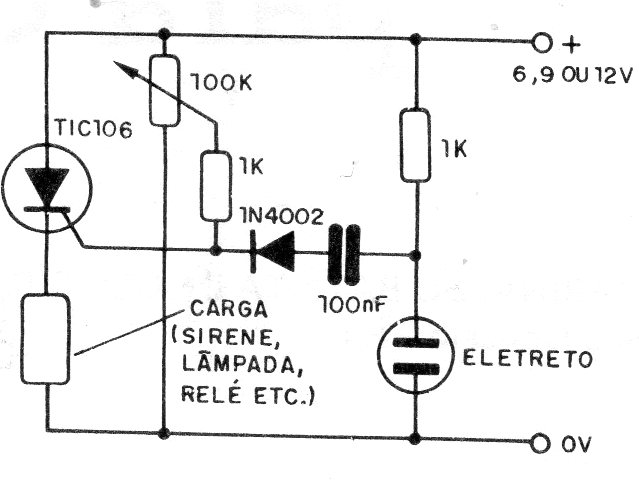

The sensor of this circuit, from an old documentation, is nothing more than an electret microphone. The circuit triggers an SCR and must be powered by a continuous voltage of 6 to 12 V and considering the 2 V drop in the SCR. The potentiometer sets the trigger point.
