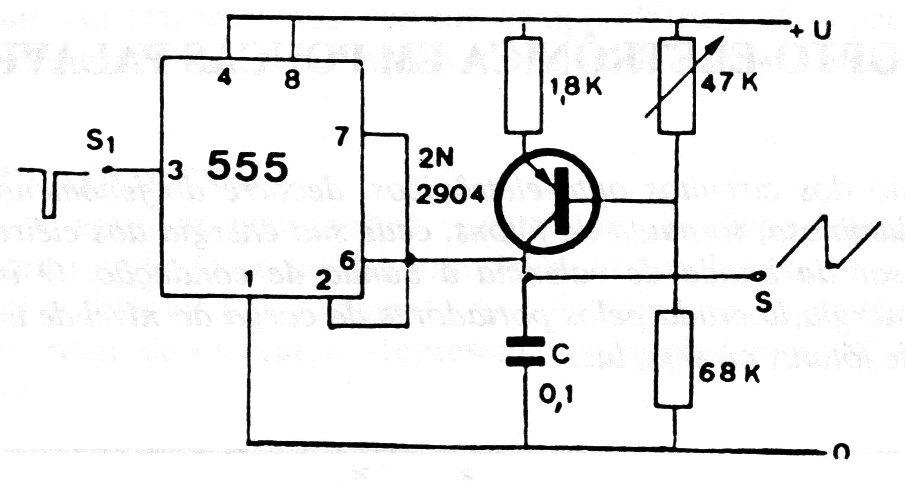

Any general-purpose transistor can be used in this circuit that generates a rise ramp that can be adjusted in the pot. The resistor in the transistor collector and C determine the frequency of the circuit that is triggered by negative pulses. The circuit can be powered by voltages from 5 to 15 V.
