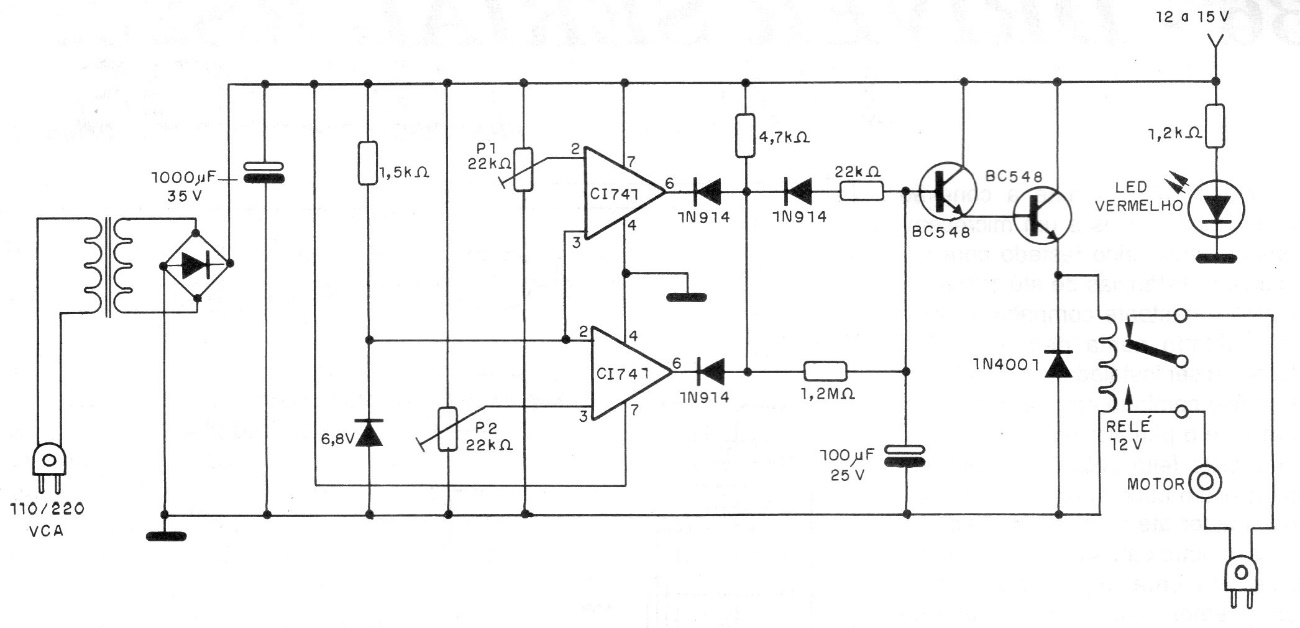

This conventional window detector circuit was found in a 1995 documentation. The trigger points, that is, the lowest and highest voltage are set in two trimpots. The circuit uses common components, and the relay is sensitive 12 V.
| Clique na imagem para ampliar |
