Delayed Relay (CB932E)

Details
Written by: Newton C. Braga

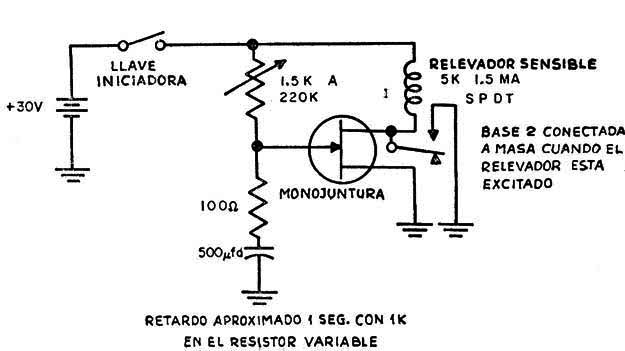

This circuit uses a sensitive reed relay to control external loads. The time delay is given by the capacitor and adjusted by the potentiometer. The circuit was found in an old publication from 1958.
