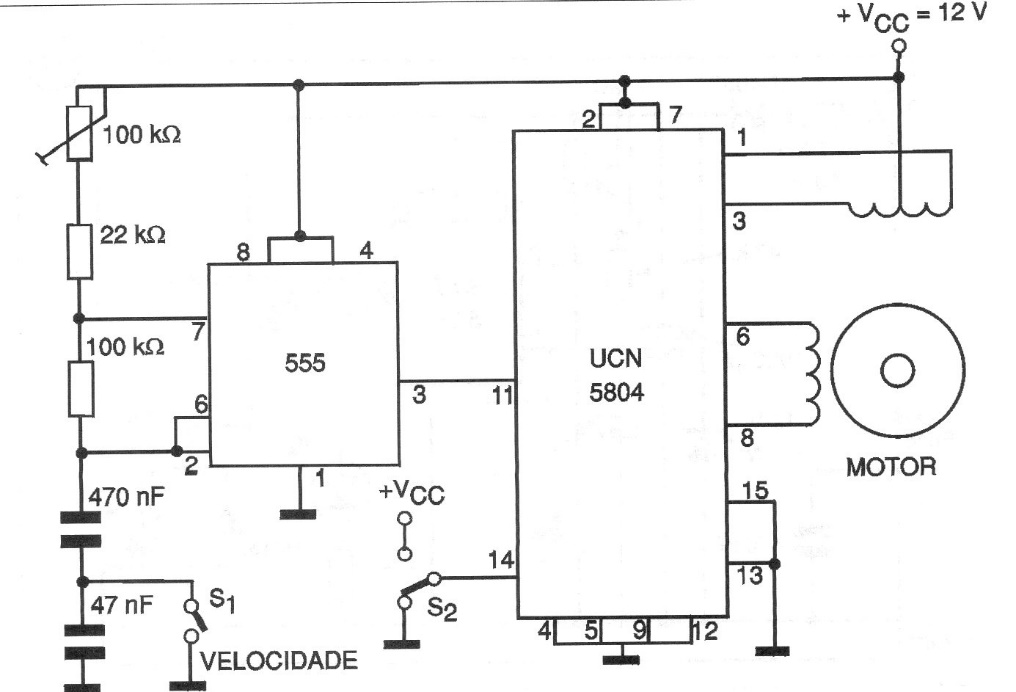

This circuit produces paced steps of an engine whose speed can be adjusted in the trimpot. The key on pin 14 selects the direction of rotation of the motor. The circuit can control 12 V motors with a maximum current of 500 mA. The circuit can be used as a shield for microcontrollers.
