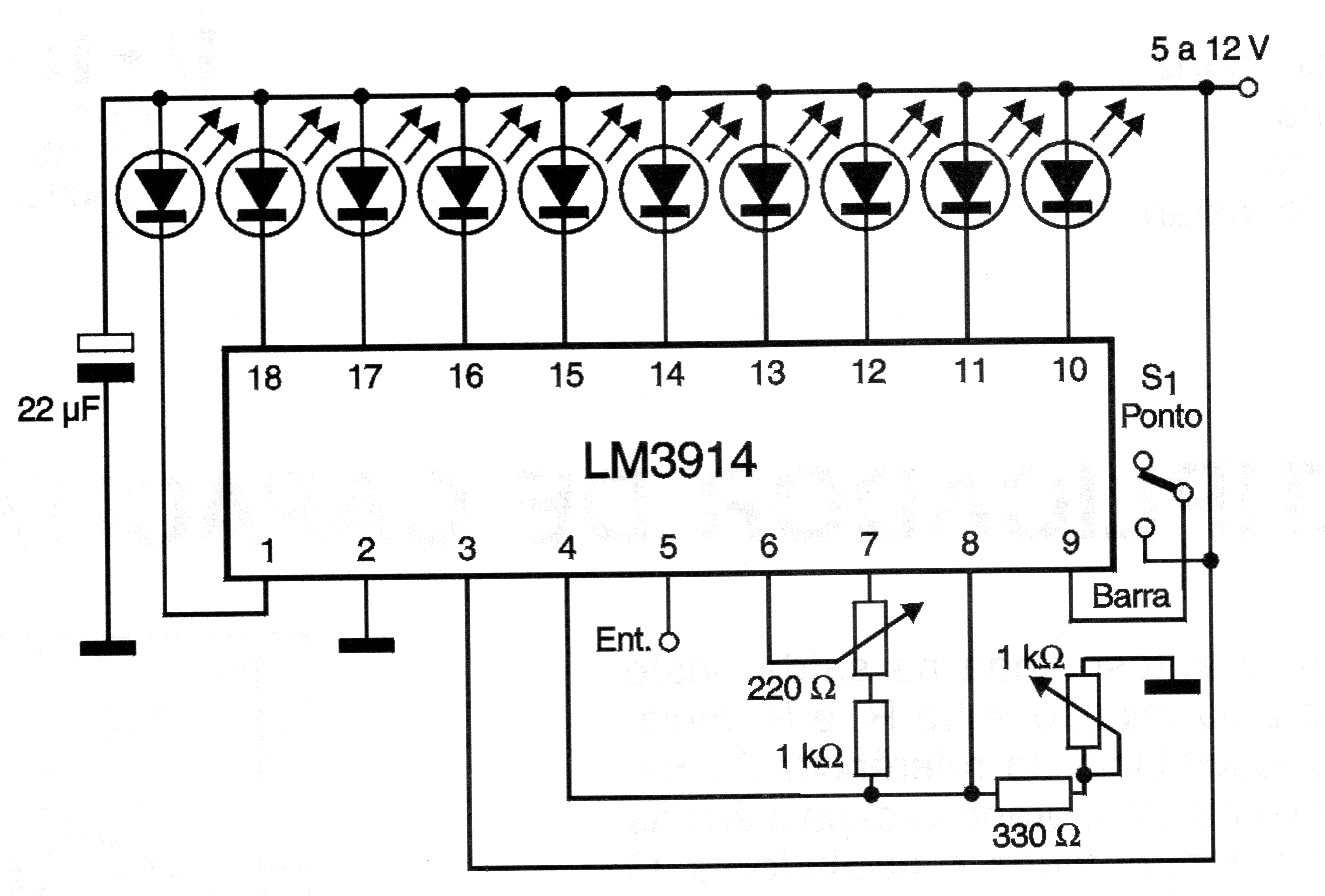

In the figure we have the way to use the LM3914 as a scale of bar LEDs or moving point. The circuit can be powered by voltages from 5 to 12 V and adjustments to the scale limits are made in the trimpot.
| Clique na imagem para ampliar |
Bar or Moving Point LM3914 (CB17538E)
- Details
- Written by: Newton C. Braga
