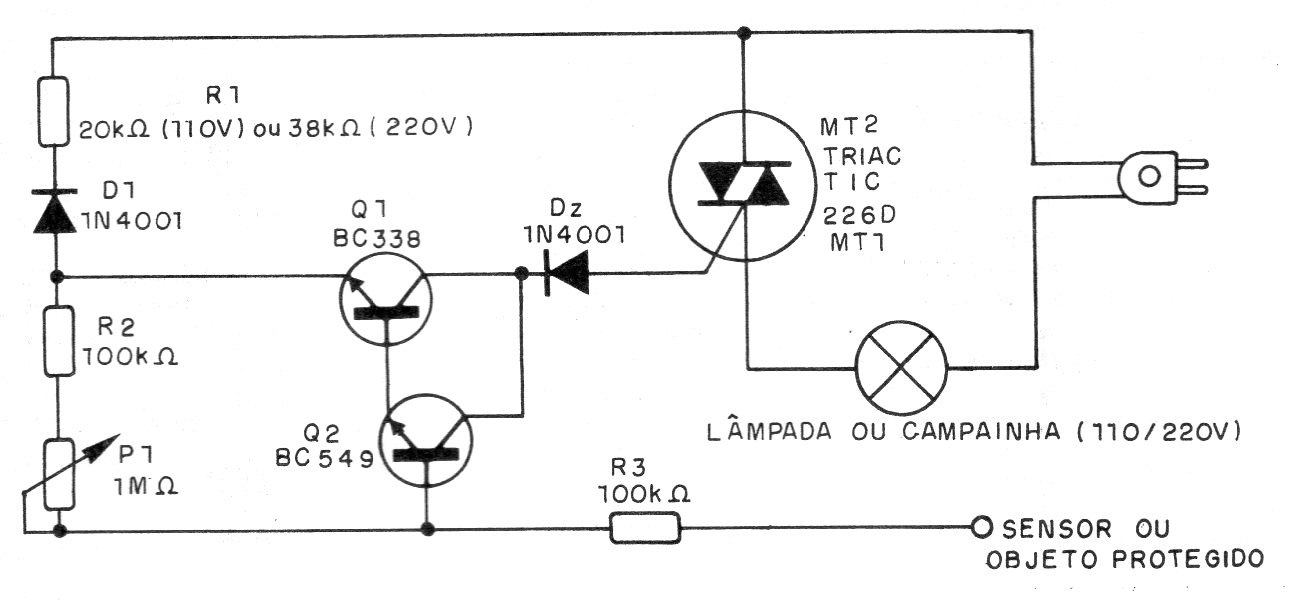

This simple touch alarm, found in a 1995 documentation, uses common components and a triac to activate a lamp or other type of charge. Depending on the load current, the triac must be equipped with a heat sink. The sensitivity is adjusted using P1. If the circuit does not work, invert the power phase.
