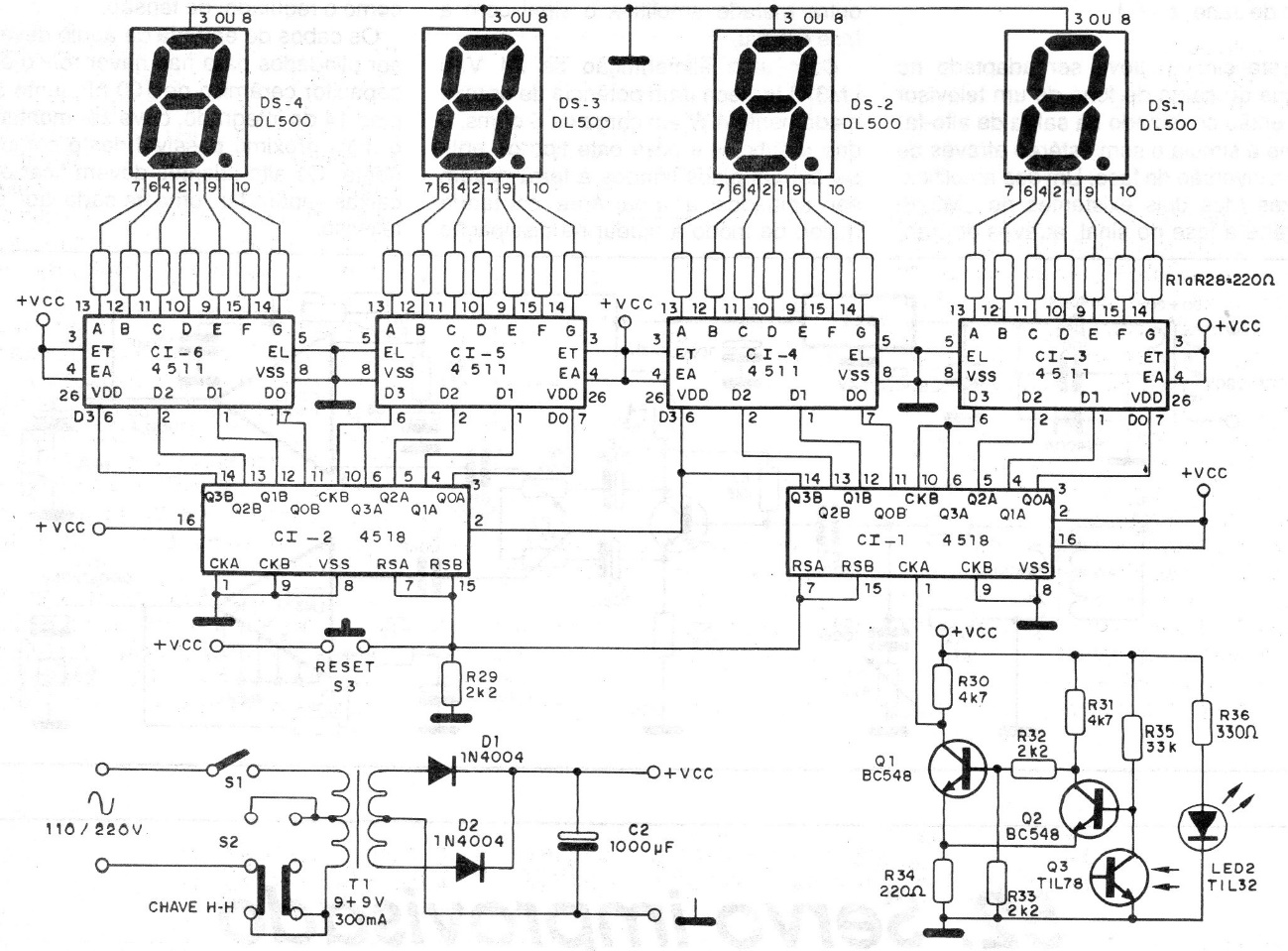

This four-digit circuit was found in a 1990 documentation. The sensor can be a contact or reed type coupled, for example, to a crank to count a coil. It can also be used as in the original an optical sensor to count the passage of an object or the teeth of a gear.
| Clique na imagem para ampliar |
