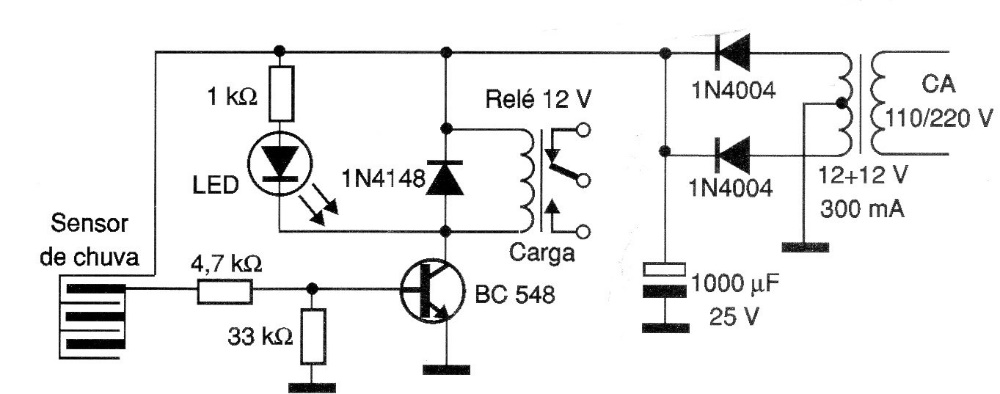

This circuit triggers a relay that can control a siren or other warning device when the first drops of rain fall on the sensor. The transformer is 12 V for relays with this voltage, but 6 V relays can be used with changing the transformer.
| Clique na imagem para ampliar |
