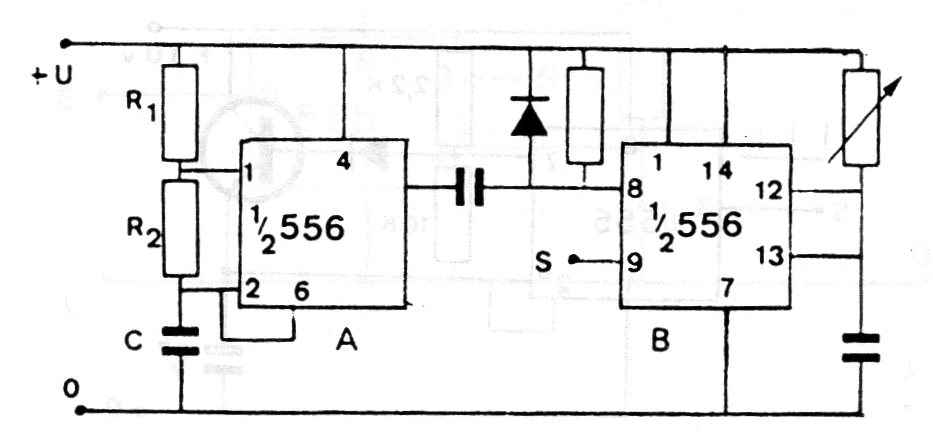

This variable frequency oscillator generates signals that have a recurrence frequency determined by oscillator A and the cyclical ratio set on oscillator B. The worthless components are determined according to the frequency range and the application. The supply must be made with voltages from 5 to 15 V.
