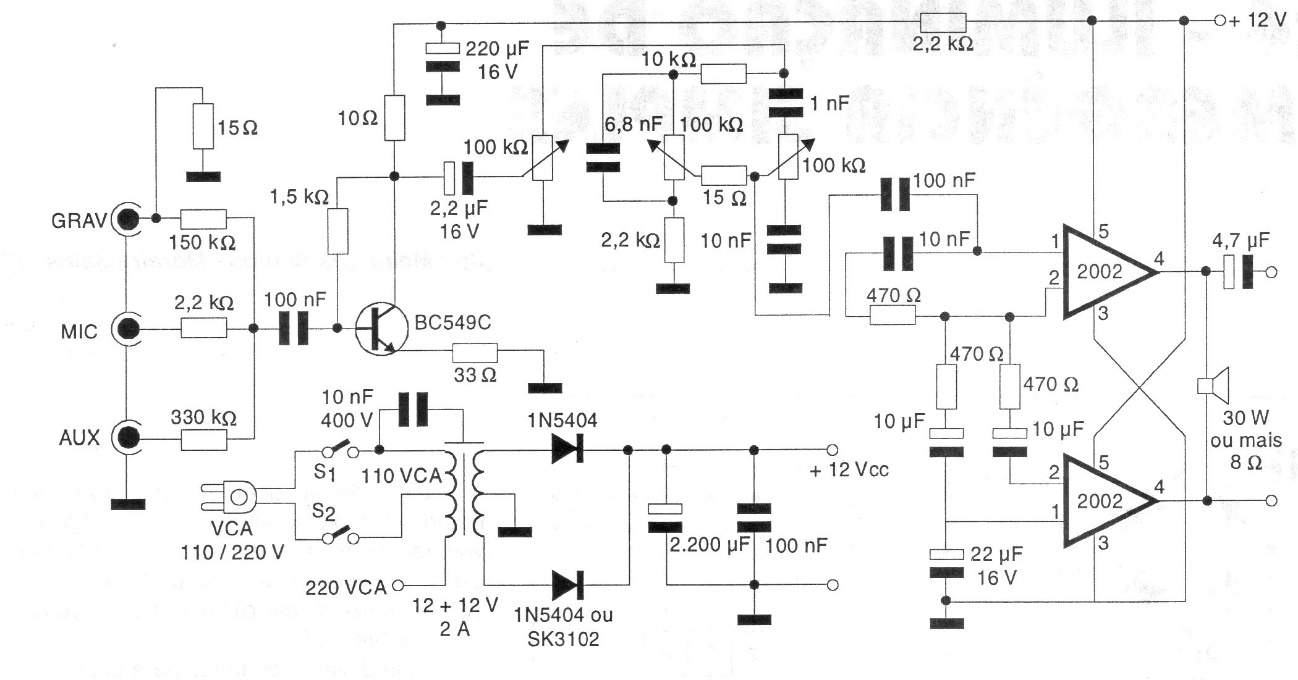

This circuit is from 1998 documentation. The circuit uses the TDA2002 in a bridged configuration and contains excellent tone control with a preamp transistor. The circuit includes the power supply and the integrated TDA2002 must have a good heat sink.
| Clique na imagem para ampliar |
