Negative Transitions Diefferentiator (CB17505E)

Details
Written by: Newton C. Braga

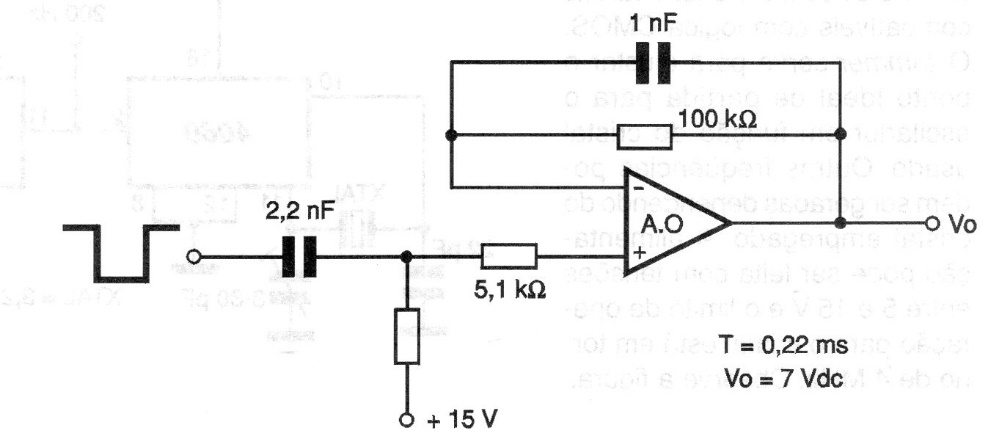

This circuit applies to any common operational, the time constant for the given values being 22 ms. The circuit must be powered by a symmetrical source.




| Clique na imagem para ampliar |
