Telephone Call Indicator (CB17398E)

Details
Written by: Newton C. Braga

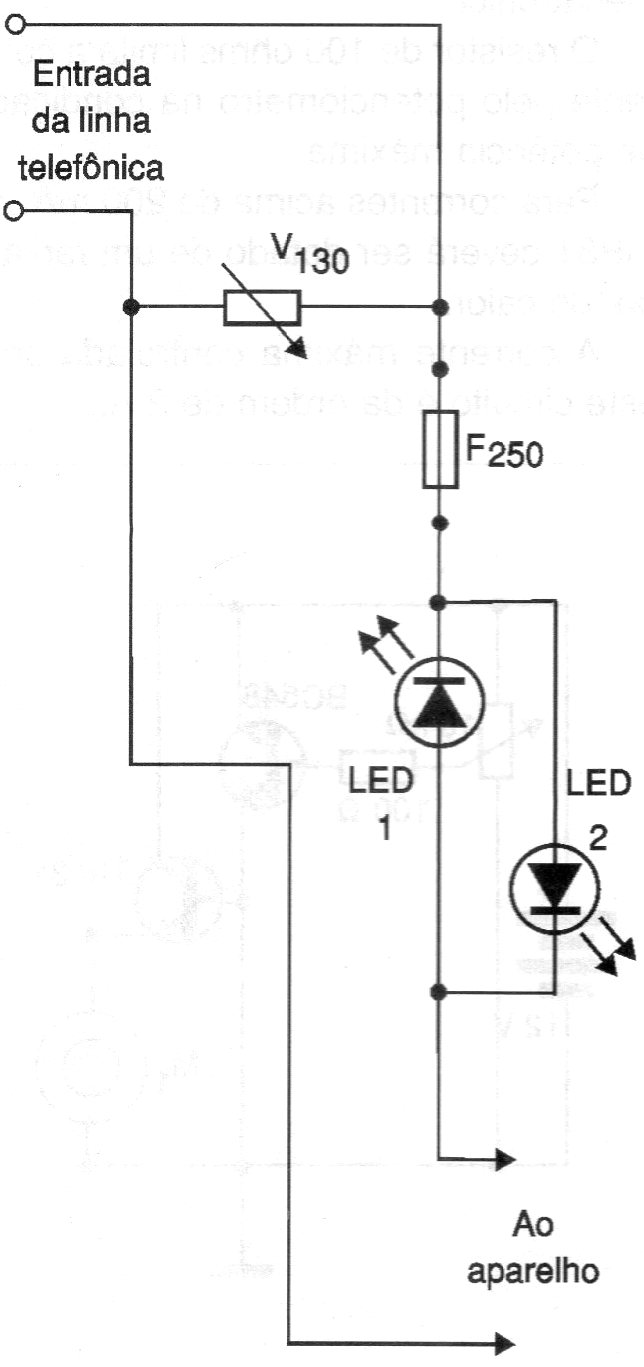

This circuit, found in 2002 documentation, triggers LEDs when a phone call is received. The LEDs will flash alternately in these conditions. Common LEDs are used in this circuit.
