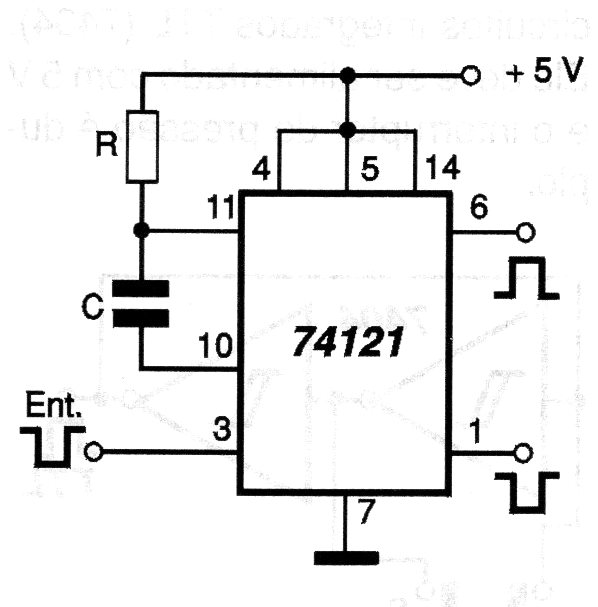

In the figure we have the way to obtain a monostable TTL based on 74121. The circuit appears in other points of the site, both separately and as part of applications, and must be powered by a voltage of 5 V.
Monostable TTL 74121 (CB17573E)
- Details
- Written by: Newton C. Braga
