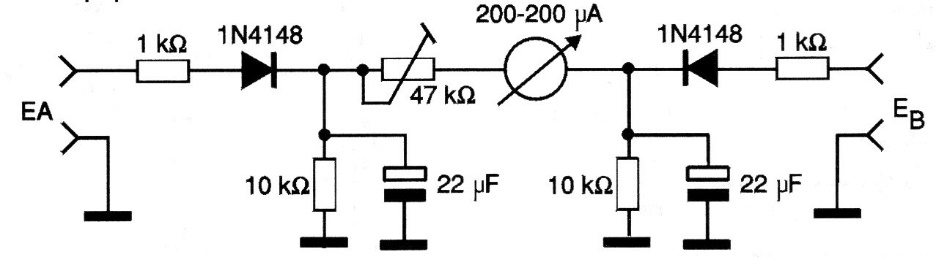

This circuit, which uses a VU-meter with zero in the center of the scale, which is not easy to obtain at present, appears elsewhere on this site. The circuit is connected directly to the output of the speakers of a sound system and the adjustment of the full scale, depending on the power of the amplifier, is done in the trimpot.
| Clique na imagem para ampliar |
