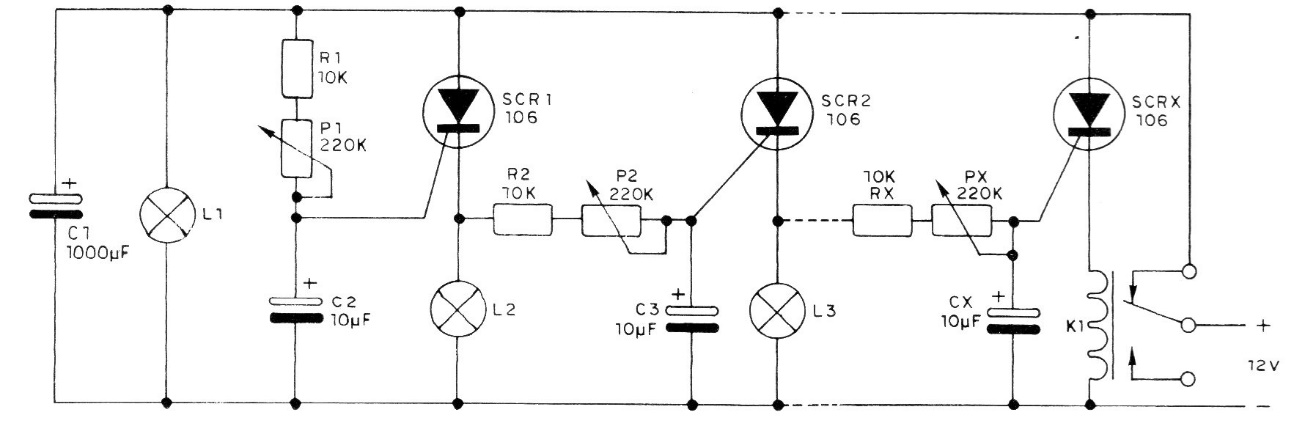

This configuration, already explored in other articles in this section and website, was found in a 1982 documentation. It can be adapted to use LEDs. Adjustments of the trigger points for each element of the sequence are made in the trimpots.
