Continuity Tester (CB17086E)

Details
Written by: Newton C. Braga

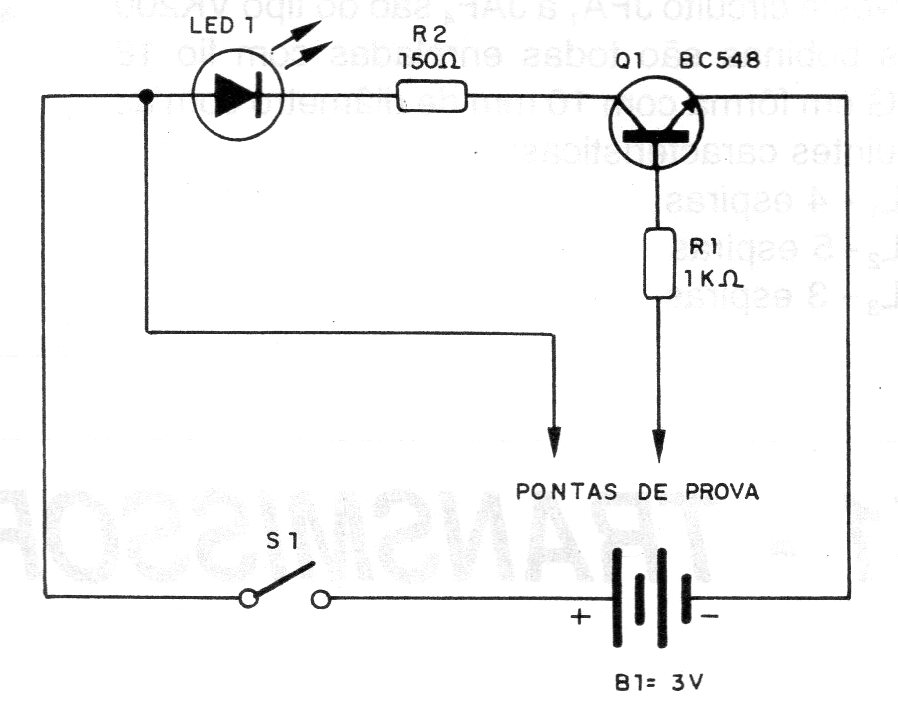

This simple continuity tester, whose configuration can be found several times on this site, is powered by only 2 batteries providing the indication on an LED.
