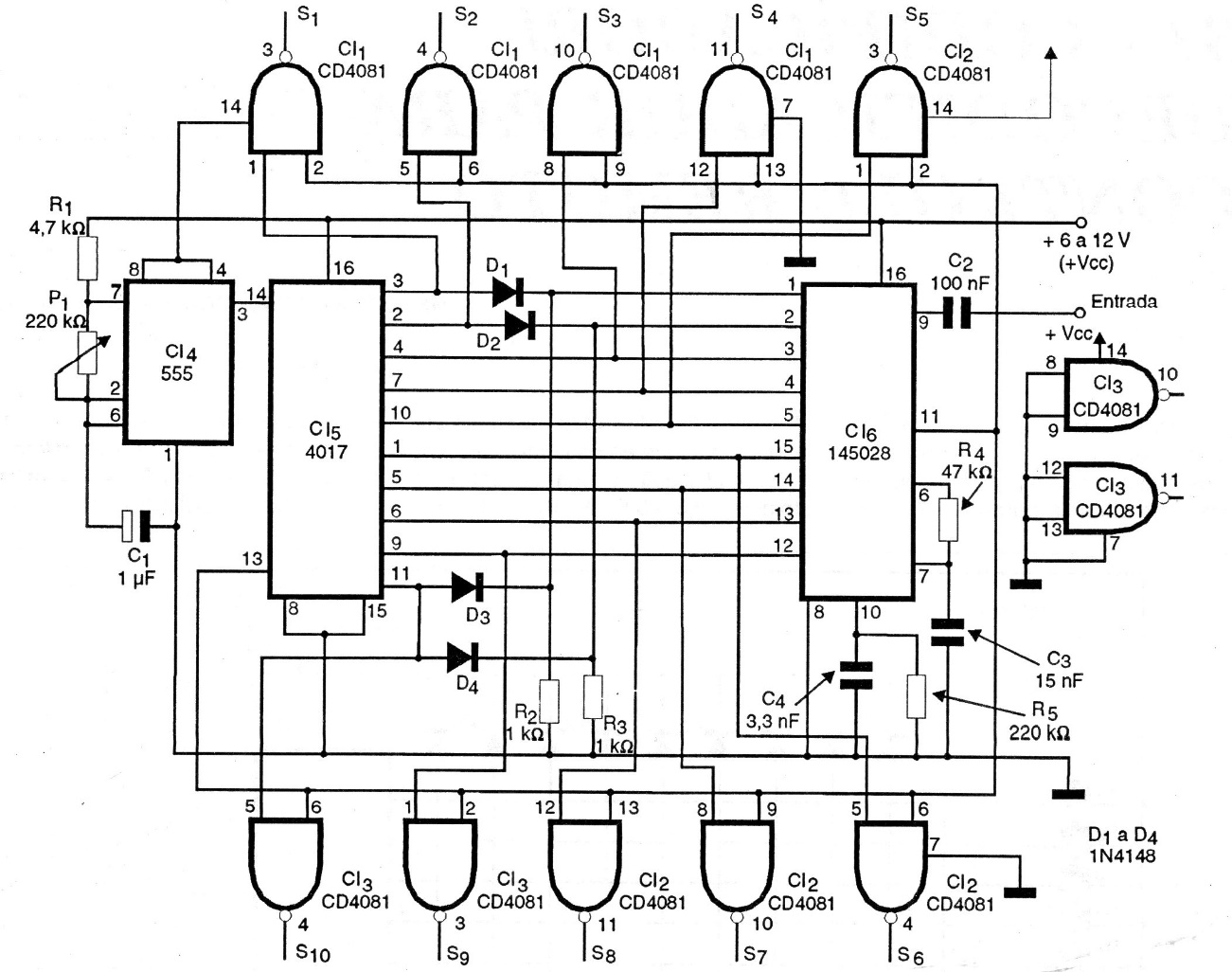

This is the decoder circuit for the previous encoder (CB17011E) using integrated circuit MC14028. This component is not very common nowadays, but it was used a lot in door openers. The circuit has an adjustment in the 555 that is made in function of a similar adjustment made in the transmitter.
