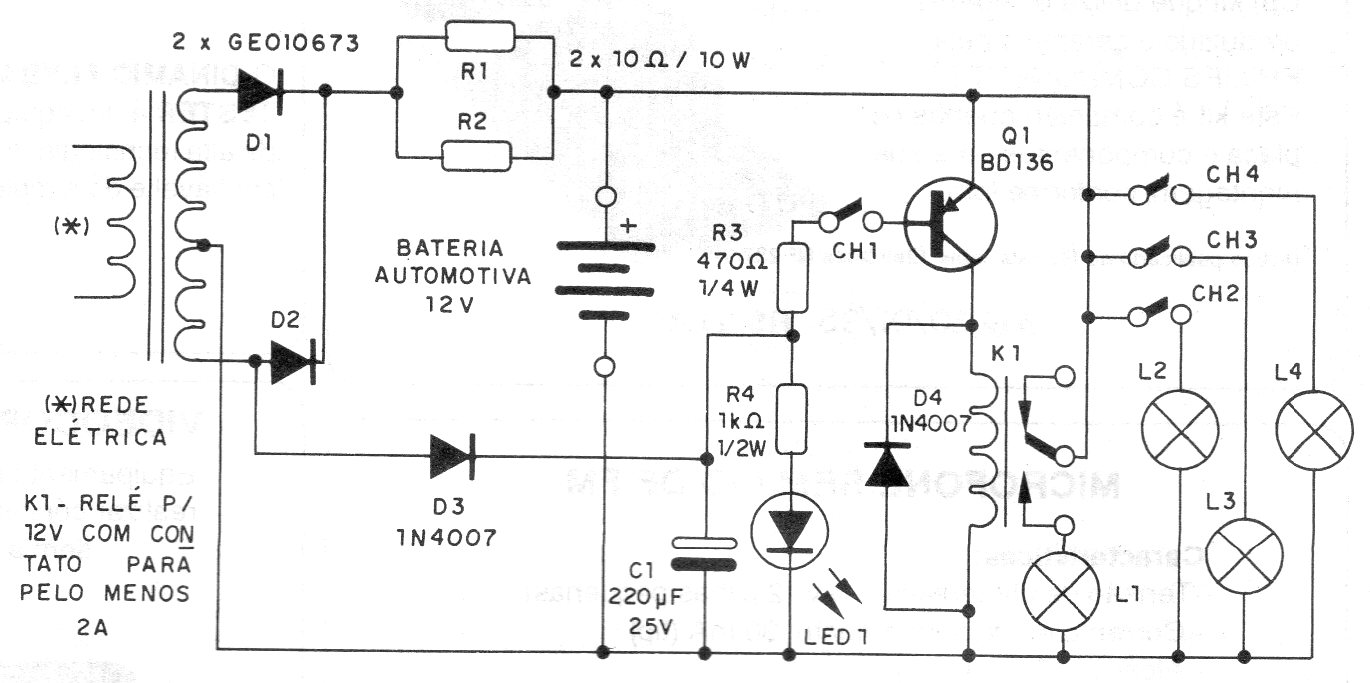

This circuit from a 1995 documentation triggers a set of lamps when the power goes out. In a more modern version, the lamps can be replaced by LEDs with appropriate resistors in series or even an inverter for fluorescent. The circuit uses a 12 V battery and a relay for the same voltage.
