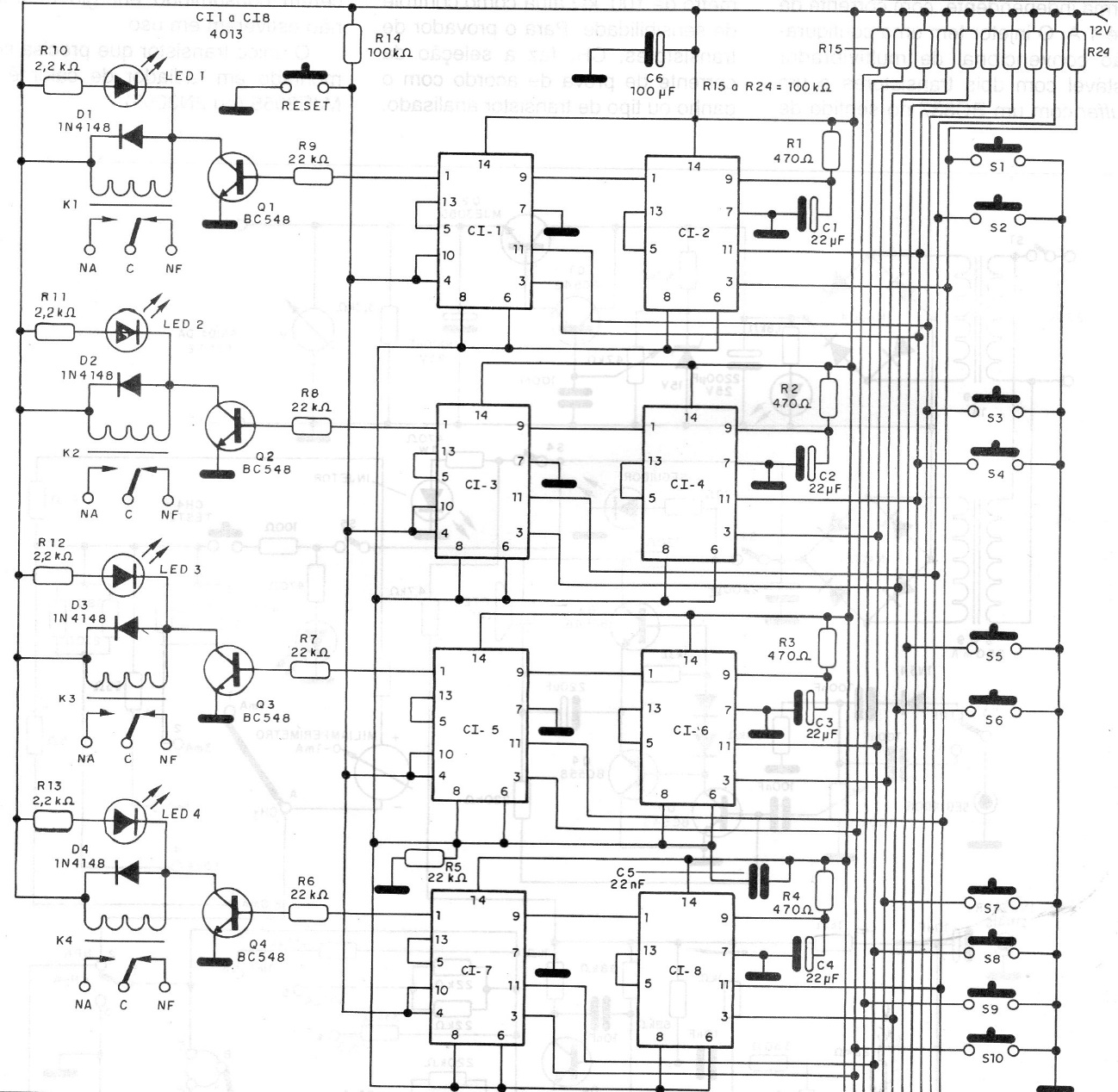

This circuit allows the coding of several relays from coded keys that must be activated, according to what one wants to activate. The circuit dates to 1995 but can still be built today even with the implementation of the idea using microcontrollers. In the example, the drives for 4 relays are given.
| Clique na imagem para ampliar |
