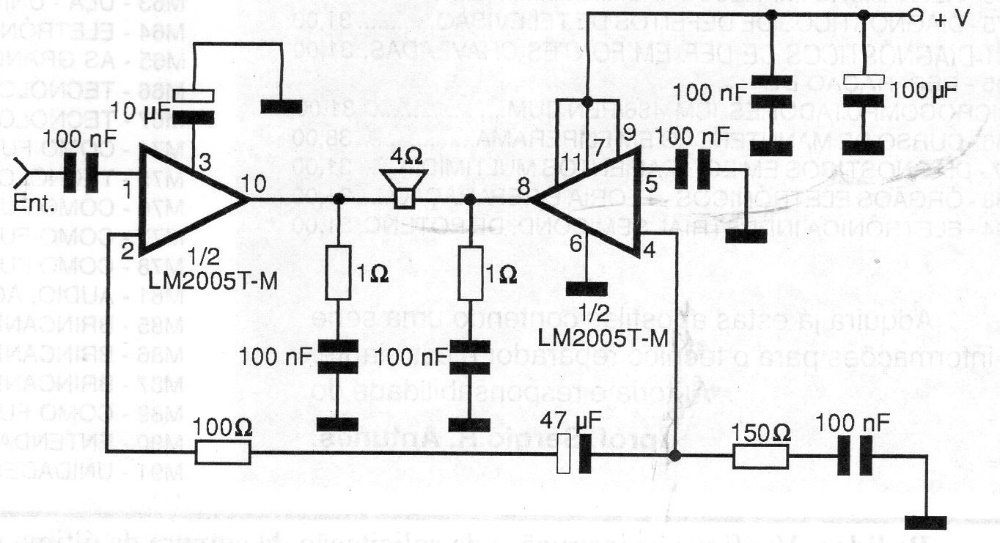

This circuit is from 1999 documentation and the indicated power is PMPO for a load of 4 ohms. Two units must be mounted for a stereo version. The circuit works with voltages from 12 to 14 V. The integrated circuit must have a good heat sink.
| Clique na imagem para ampliar |
