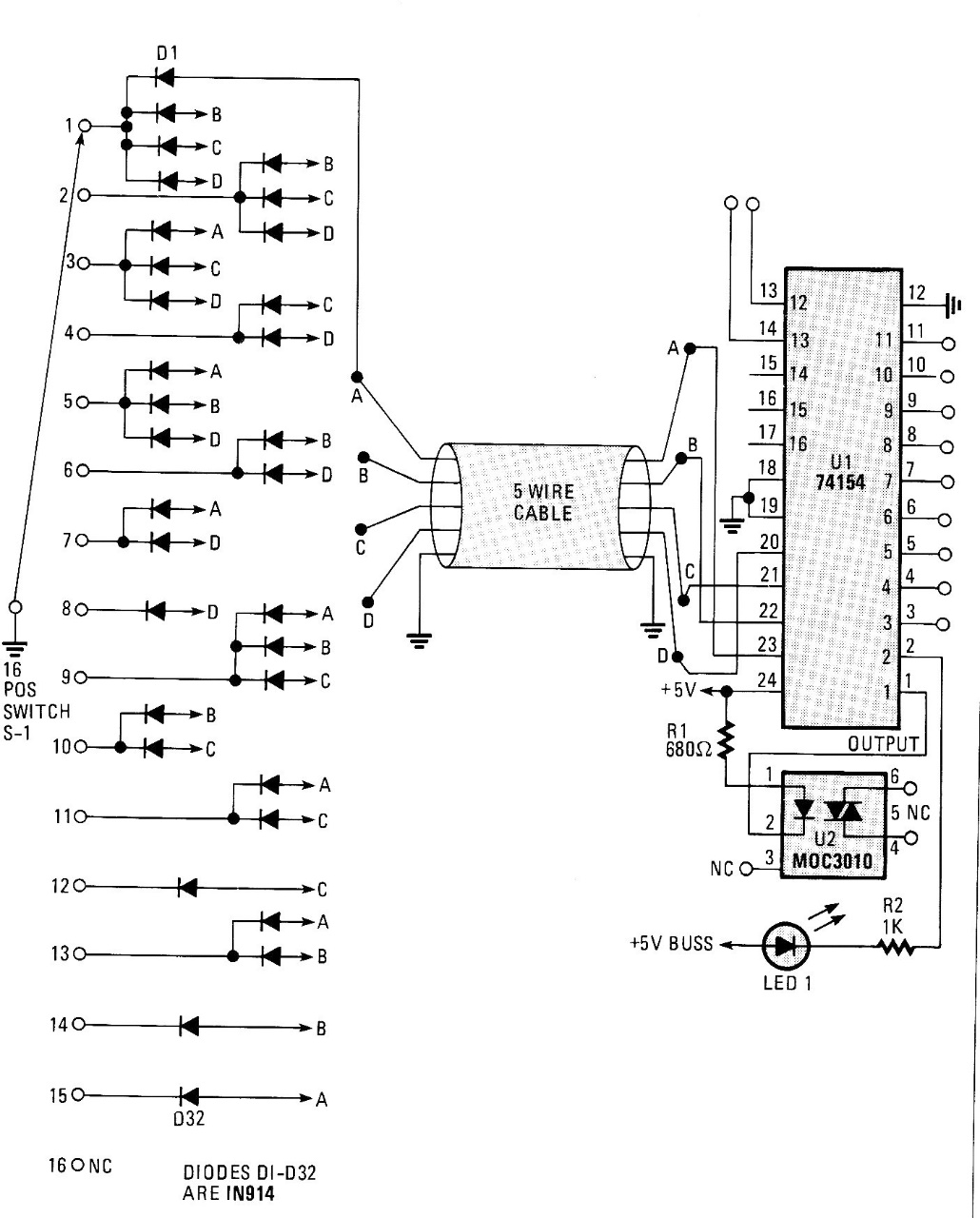

This is an interesting solution for intelligent load control using a cable and a diode array to obtain selectable multiple drive. For the logic sector, the supply is 5 V, and the circuit can serve as the basis for a similar micro controlled project. The circuit was found in an old American publication from 1988.
