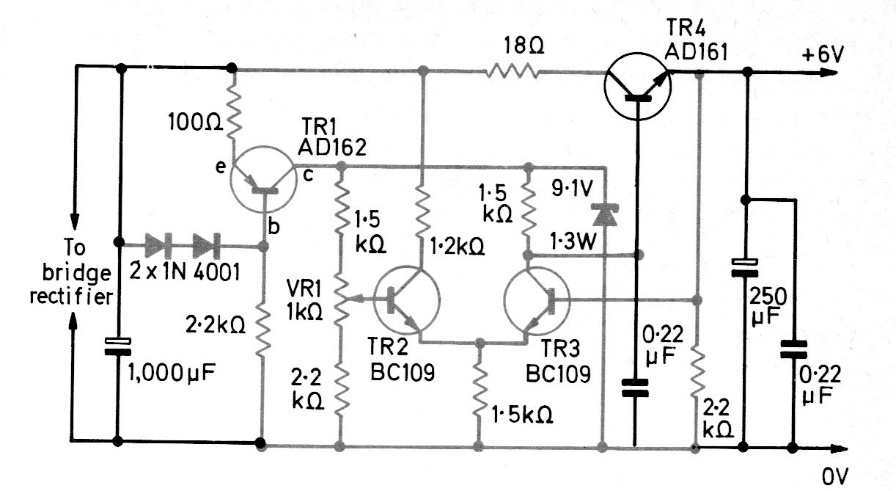

This short circuit protection circuit is found in an old technical documentation. The circuit can be implemented with more modern equivalent transistors. The power transistor can be the BD135 for currents up to 500 mA.
