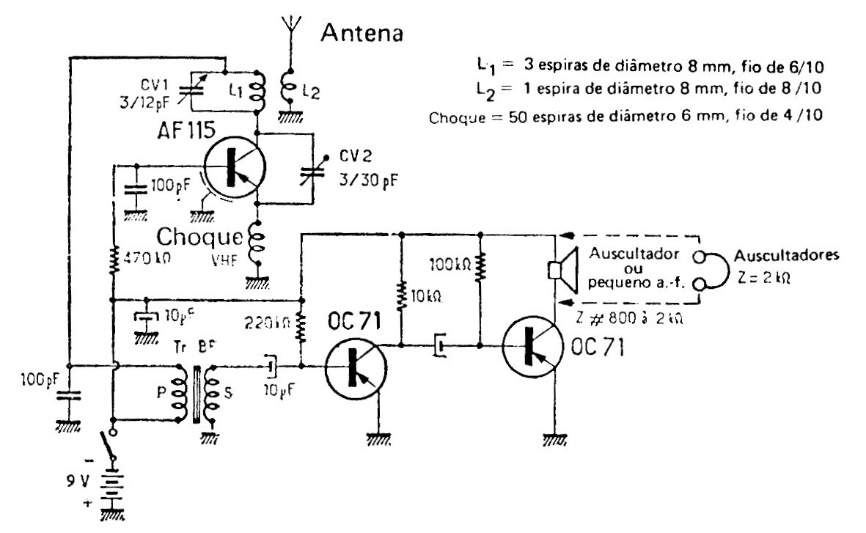

We found this circuit in a European publication from the 1980s. The circuit uses germanium transistors from the time and information is given for making the coils. The antenna is of the telescopic type from 80 cm to 1.20 meters. The circuit admits listening in a small loudspeaker with high impedance or with an output transformer.
