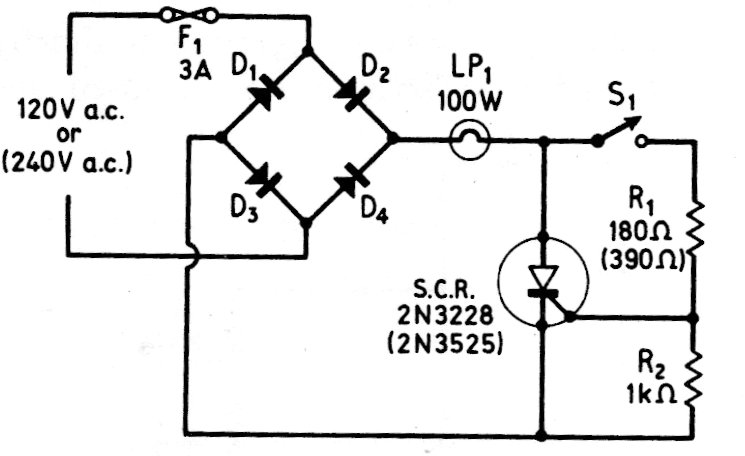

In the figure we have the way to configure a control for incandescent lamps with full wave control using SCR. The diodes must withstand the current of the lamp and the circuit works on both the 110 V and 220 V network.
