Difference amplifier OP27 (CB19721E)

Details
Written by: Newton C. Braga

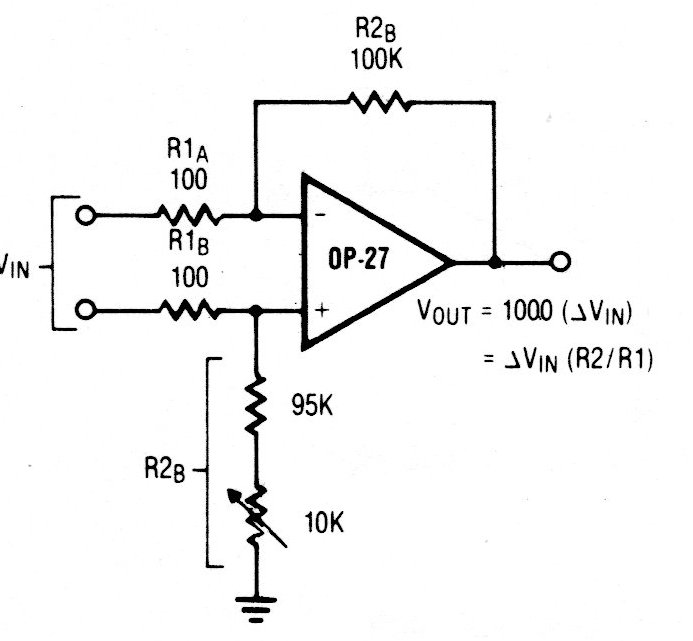

The operational amplifier used is not common today, but the circuit can be implemented with modern operational ones. The gain is 1000 and the source must be symmetrical.
