100 MHz FET Transmitter (CB19445E)

Details
Written by: Newton C. Braga

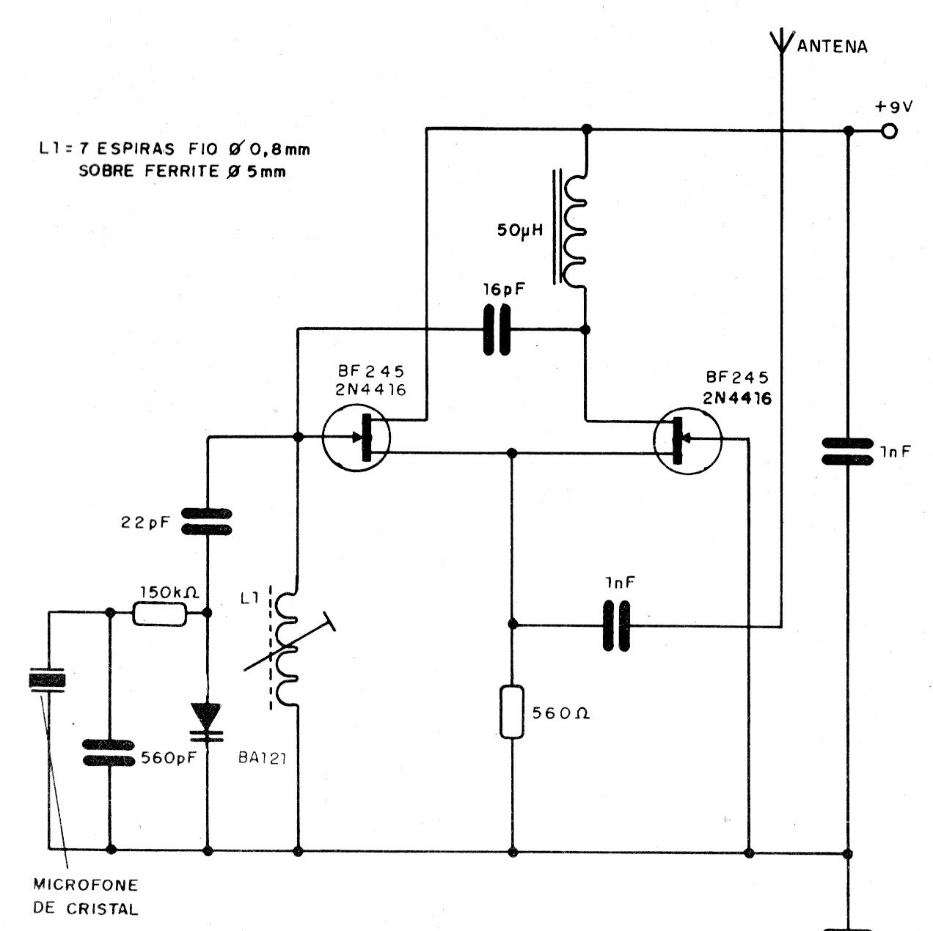

We found this circuit in a documentation from the 90's. The coil has its characteristics given next to the diagram. Power is provided by a 9 V battery and a range of a few tens of meters.




| Clique na imagem para ampliar |
