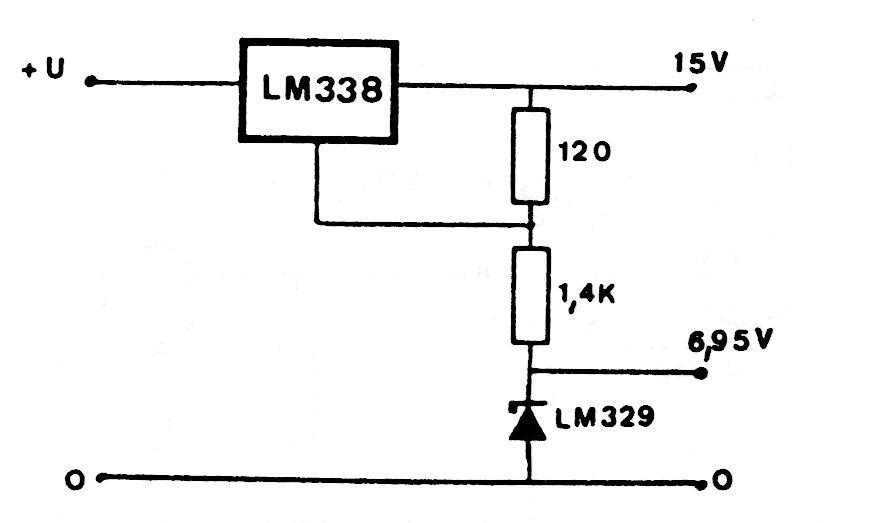

The reference voltage determines the output voltage on this circuit which has a maximum current of 5 A. The circuit is from old documentation. The integrated circuit must be equipped with an appropriate heat sink. Observe the voltage values for the case given as an example.
