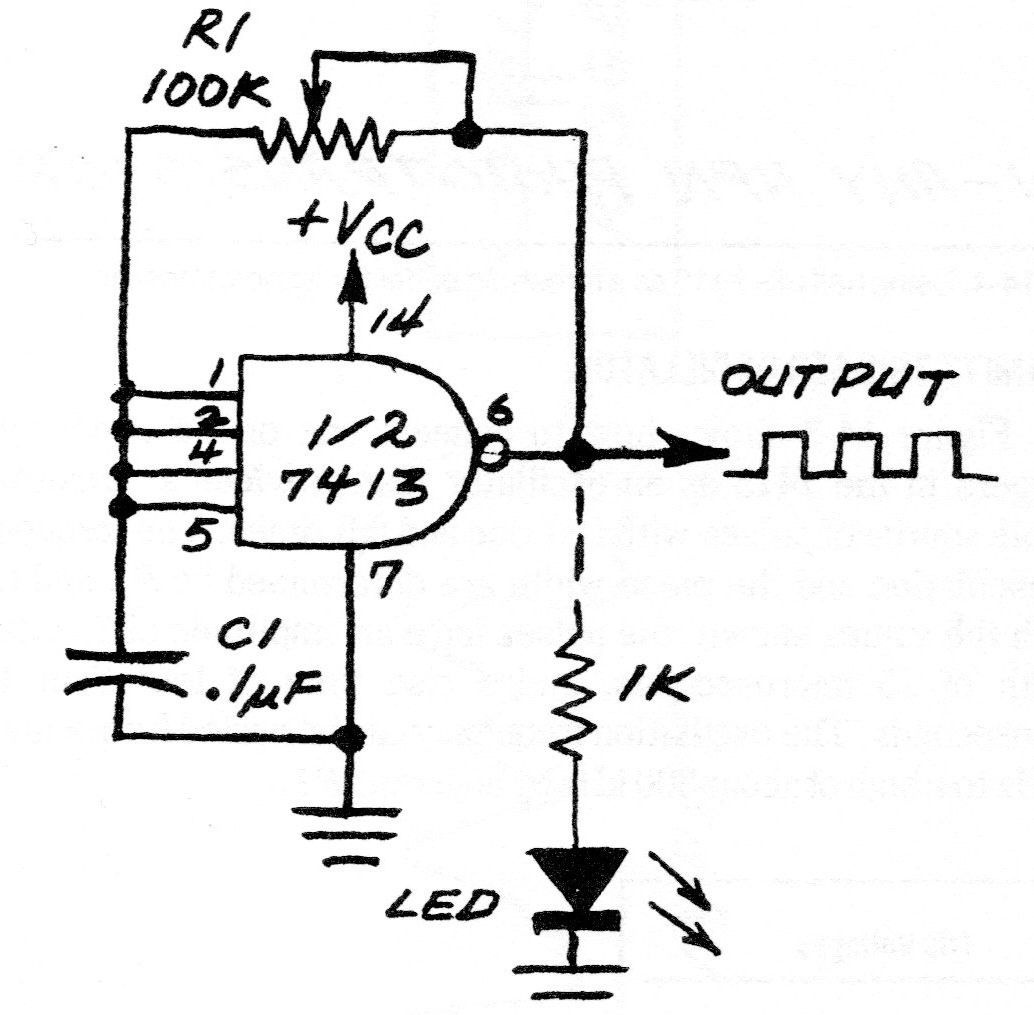

In the figure we have the way to use a TTL 7413 port as a low frequency oscillator making an LED flash. The circuit is from old American documentation and must be powered by a 5 V source. R1 adjusts the frequency.
| Clique na imagem para ampliar |
TTL Oscillator 7413 (CB19318E)
- Details
- Written by: Newton C. Braga
