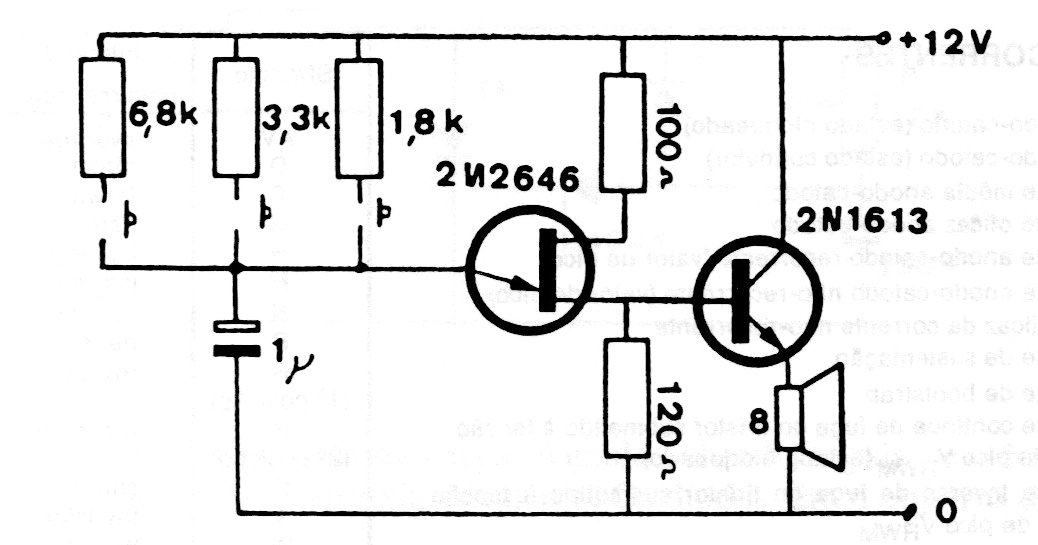

This circuit appears in other versions in this same section of the website and in other sections with different power transistors. The circuit is from 80s documentation and, in fact, it can work with voltages from 6 to 15 V.
| Clique na imagem para ampliar |
