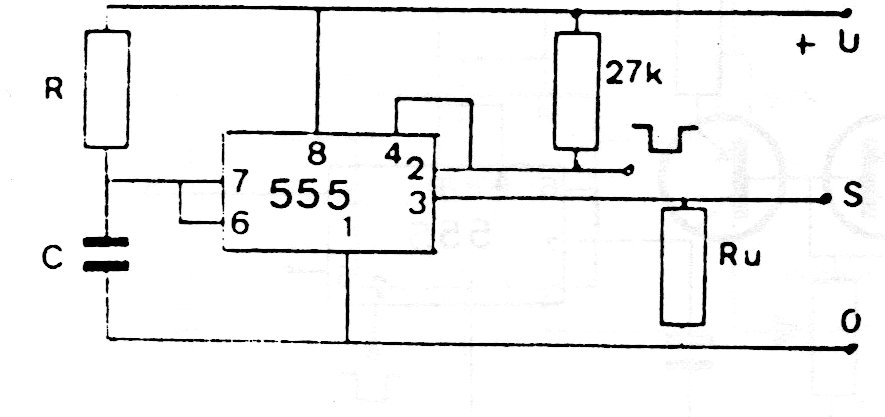

With the feedback of the output circuit, the monostable acts as a frequency divider, that is, it can be retriggered. The configuration is from 80s documentation, but it appears in several practical 555 applications shown on this site.
